Yamaha Outboard Parts - Remo Con Attachment - 25NEMO (1988) | Flood Marine

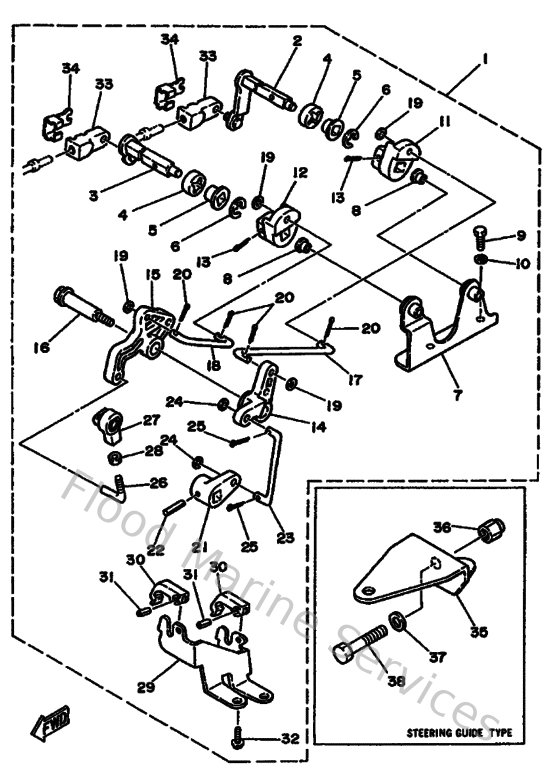

Diagram: Remo Con Attachment

Diagram

Parts List

Reference
Description
Price


1
6L2485010000
Remote Cont. Attachment assembly
Loading…

↗
2
6L2485440000
Lever, Shift Contrl
Loading…

↗
3
6L2485340000
Throttle Levr, Cntl
Loading…

↗
4
6L2441770000
Washer
Loading…

↗
5
682441320000
Bushing
Loading…

↗
6
990800760000
Circlip(6l2)
Loading…

↗
8
9038606M1200
Bushing (688)
Loading…

↗
9
973130601600
Bolt, hexagon deep recess
Loading…

↗
10
929900660000
Washer, plain (646)
Loading…

↗
11
6L2441730000
Lever, Shift Contr
Loading…

↗
12
6L2421540000
Lever, Throttle Con
Loading…

↗
13
914902502500
Pin, cotter(6l5)
Loading…

↗
14
6L2441410000
Link, shift rod
Loading…

↗
15
6L2412120000
Arm, accel.
Loading…

↗
16
9010906M2800
Bolt(6j8)
Loading…

↗
17
6L2421910100
Rod 1
Loading…

↗
18
6L2421920000
Rod 2
Loading…

↗
19
902020508800
Washer, plate (666)
Loading…

↗
20
914902001000
Pin, cotter
Loading…

↗
21
6L2441220000
Bushing, shift rod lever
Loading…

↗
22
916903031800
Pin, spring (6h3)
Loading…

↗
26
6L2412380000
Joint, link
Loading…

↗
27
6L2412370000
Joint, link
Loading…

↗
28
953030570000
Nut (656)
Loading…

↗
29
6L2485310000
Bracket, remote control 1
Loading…

↗
30
682485385000
Clamp, cable
Loading…

↗
31
916903001200
Pin, spring
Loading…

↗
32
9010506M2300
Bolt (6g1)
Loading…

↗
33
6G8263630000
End, wire 1
Loading…

↗
34
6G8263640000
End, wire 2
Loading…

↗
35
689485110000
Hook, steering
Loading…

↗
36
901851002700
Nut, self-locking
Loading…

↗
37
929901060000
Washer, plate
Loading…

↗
38
973751004000
Bolt, hexagon deep recess
Loading…

↗
