30DEO (1994)
Remo Con Attachment

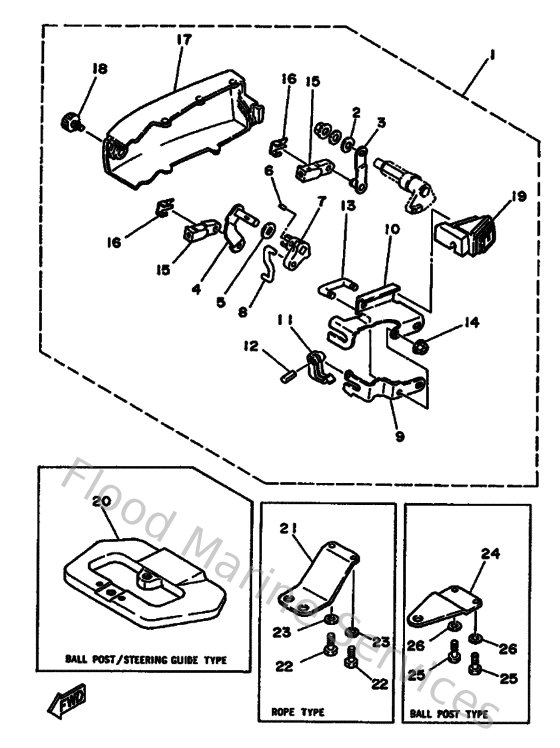

Diagram: Remo Con Attachment
Parts List
Reference
Description
Price
1
6J848501024D
Remocon attachment assembly
Loading…
↗
2
929900810000
Ybs67-8 washer, spring
Loading…
↗
3
6J8485340000
Throttle lever, control
Loading…
↗
4
6J8485440100
Lever, shiftcontrol
Loading…
↗
5
6J8441770000
Washer
Loading…
↗
6
9025403M0300
Pin, spring
Loading…
↗
7
6J8441730200
Lever, shift control
Loading…
↗
8
6J8421690100
Joint
Loading…
↗
9
6J8485310000
Bracket, remote control
Loading…
↗
10
6J8485320000
Bracket, remote control 2
Loading…
↗
12
916903001200
Pin, spring
Loading…
↗
13
9010906M2900
Bolt(6j8)
Loading…
↗
14
9017906M2400
Nut(6j8)
Loading…
↗
15
6G8263630000
End, wire 1
Loading…
↗
16
6G8263640000
End, wire 2
Loading…
↗
17
6J8427235100
Cover, bottom (dbn:gray)
Loading…
↗
18
6J8428460000
Screw
Loading…
↗
19
6J8427241000
Grommet
Loading…
↗
20
6J848511018D
Hook, steering
Loading…
↗
21
6G8485110000
Hook, steering
Loading…
↗
22
970950601600
Bolt, hexagon deep recess
Loading…
↗
23
929900660000
Washer, plain (646)
Loading…
↗
