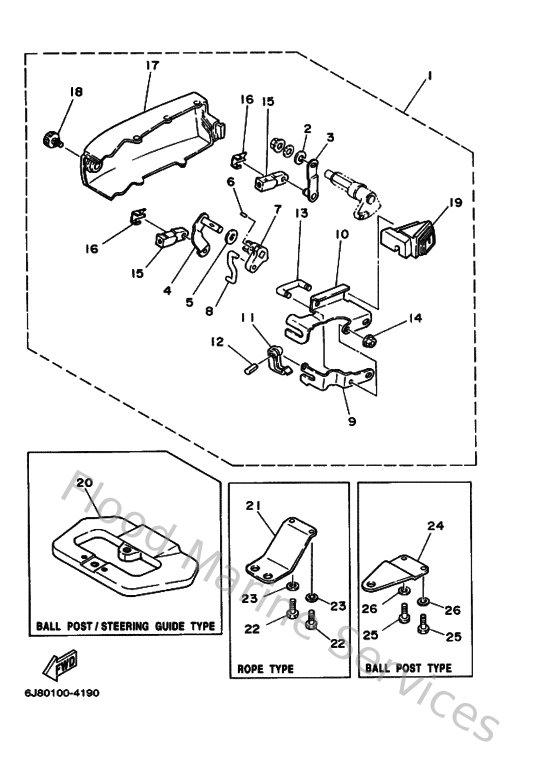

Diagram: Remo Con Attachment

Diagram

Parts List

Reference
Description
Price


1
6J8485011100
Attachment kit
Loading…

↗
2
929900810000
Ybs67-8 washer, spring
Loading…

↗
3
6J8485340000
Throttle lever, control
Loading…

↗
4
6J8485440100
Lever, shiftcontrol
Loading…

↗
5
6J8441770000
Washer
Loading…

↗
6
9025403M0300
Pin, spring
Loading…

↗
7
6J8441730200
Lever, shift control
Loading…

↗
8
6J8421690100
Joint
Loading…

↗
9
6J8485310000
Bracket, remote control
Loading…

↗
11
682485385000
Clamp, cable
Loading…

↗
12
916903001200
Pin, spring
Loading…

↗
15
6G8263630000
End, wire 1
Loading…

↗
16
6G8263640000
End, wire 2
Loading…

↗
20
6J848511014D
Hook, steering
Loading…

↗
21
6G8485110000
Hook, steering
Loading…

↗
22
970950601600
Bolt, hexagon deep recess
Loading…

↗
23
929900660000
Washer, plain (646)
Loading…

↗
24
6G8485111000
Hook, steering
Loading…

↗
