Yamaha Outboard Parts - Remo Con Attachment - 30DMH (1986) | Flood Marine

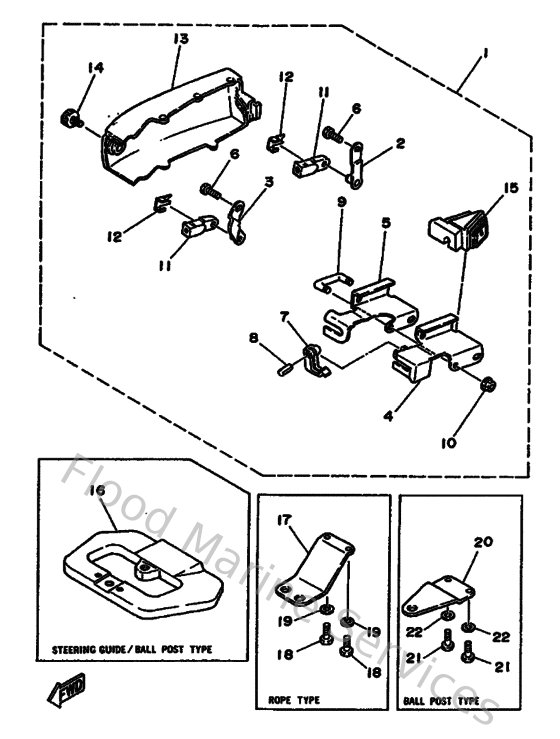

Diagram: Remo Con Attachment

Diagram

Parts List

Reference
Description
Price


2
6J8485340000
Throttle lever, control
Loading…

↗
3
6J8485440000
Lever, shiftcontrol
Loading…

↗
4
6J8485310000
Bracket, remote control
Loading…

↗
5
6J8485320000
Bracket, remote control 2
Loading…

↗
6
973950601600
Bolt, hexagon deep recess
Loading…

↗
7
682485385000
Clamp, cable
Loading…

↗
8
916903001200
Pin, spring
Loading…

↗
9
9010906M2900
Bolt(6j8)
Loading…

↗
10
9017906M1200
Nut(6j8)
Loading…

↗
11
6G8263630000
End, wire 1
Loading…

↗
12
6G8263640000
End, wire 2
Loading…

↗
13
6J8427232000
Cover, Bottom
Loading…

↗
14
6J8428460000
Screw
Loading…

↗
15
6J8427241000
Grommet
Loading…

↗
16
6J84851100EJ
Hook, steering
Loading…

↗
17
6G8485110000
Hook, steering
Loading…

↗
18
970950601600
Bolt, hexagon deep recess
Loading…

↗
19
929900660000
Washer, plain (646)
Loading…

↗
20
6G8485111000
Hook, steering
Loading…

↗
