Yamaha Outboard Parts - Remo Con Attachment - F6AMH (2000) | Flood Marine

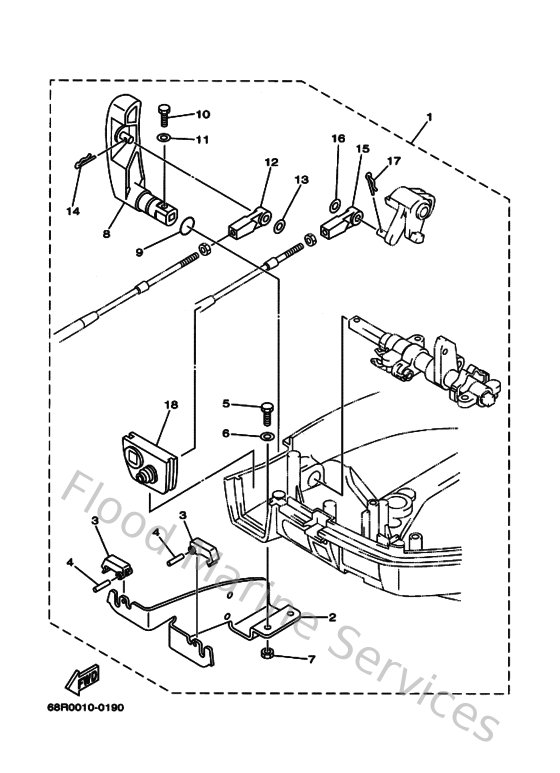

Diagram: Remo Con Attachment

Diagram

Parts List

Reference
Description
Price


1
68R485010000
Remote cont. attachment assembly.
Loading…

↗
2
68T485310000
Bracket, remote control 1
Loading…

↗
3
682485385000
Clamp, cable
Loading…

↗
4
916903001200
Pin, spring
Loading…

↗
5
970800601200
Bolt(gh1)
Loading…

↗
6
929950660000
Washer, plain (646)
Loading…

↗
7
953800660000
Nut(661)
Loading…

↗
8
68T441111000
Handle, gear shift
Loading…

↗
9
932101279000
O-ring(3ld)
Loading…

↗
10
970950501600
Bolt(6a1)
Loading…

↗
11
929950560000
Washer, plain (646)
Loading…

↗
12
663483440000
Cable end, remote control
Loading…

↗
13
9020108M1200
Washer plate (682)
Loading…

↗
14
904681800800
Clip 620436610000
Loading…

↗
18
68T427251000
Grommet
Loading…

↗
