FT9.9AMH (2001)
Remo Con Attachment

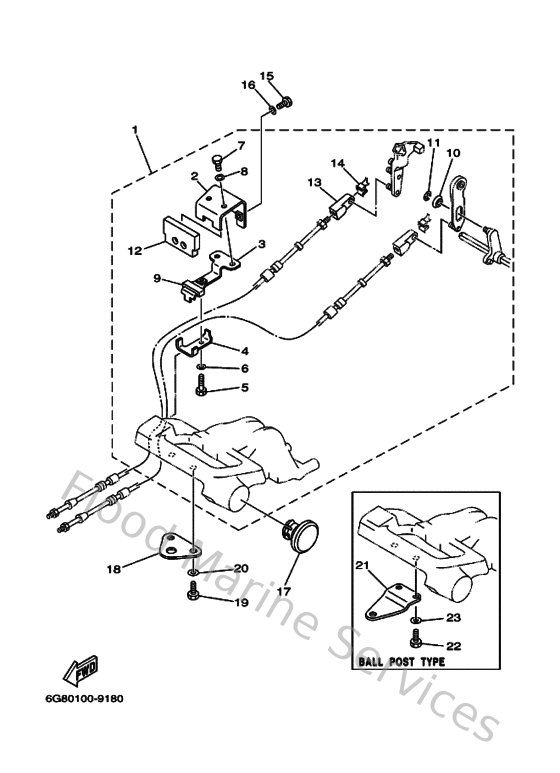

Diagram: Remo Con Attachment
Parts List
Reference
Description
Price
1
6G8485010300
Remote cont. attachment assembly.
Loading…
↗
2
6G8485315100
Bracket Remote Control 1
Loading…
↗
3
6G8485325000
Bracket, remote control 2
Loading…
↗
4
6G8485385000
Clamp, cable
Loading…
↗
5
970950603000
Bolt(jf7)
Loading…
↗
6
929900660000
Washer, plain (646)
Loading…
↗
7
970950601200
Bolt(gh1)
Loading…
↗
8
929950660000
Washer, plain (646)
Loading…
↗
9
6G8485655000
Grommet
Loading…
↗
10
9038706M7300
Collar
Loading…
↗
11
990800460000
Circlip (eu0)
Loading…
↗
12
6G8483515100
Seal, rubber
Loading…
↗
13
6G8263630000
End, wire 1
Loading…
↗
14
6G8263640000
End, wire 2
Loading…
↗
15
970950601600
Bolt, hexagon deep recess
Loading…
↗
17
6G8425510000
Grommet
Loading…
↗
18
6G8485112000
Hook Steering
Loading…
↗
21
6G8485111000
Hook, steering
Loading…
↗
