20DMHO (1989)
Remo-con Attachment

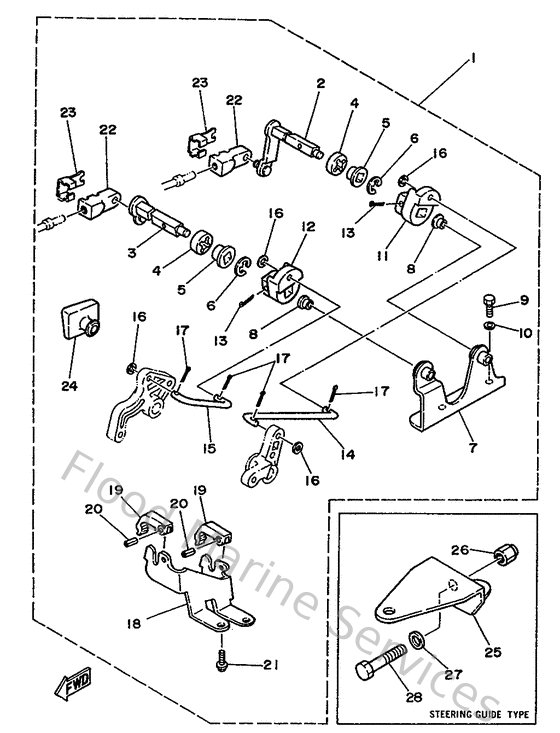

Diagram: Remo-con Attachment
Parts List
Reference
Description
Price
2
6L2485440000
Lever, Shift Contrl
Loading…
↗
3
6L2485340000
Throttle Levr, Cntl
Loading…
↗
4
6L2441770000
Washer
Loading…
↗
5
682441320000
Bushing
Loading…
↗
6
990800760000
Circlip(6l2)
Loading…
↗
8
9038606M1200
Bushing (688)
Loading…
↗
9
970950601600
Bolt, hexagon deep recess
Loading…
↗
10
929900660000
Washer, plain (646)
Loading…
↗
11
6L2441730000
Lever, Shift Contr
Loading…
↗
12
6L2421540000
Lever, Throttle Con
Loading…
↗
13
914902502500
Pin, cotter(6l5)
Loading…
↗
14
6L2421910100
Rod 1
Loading…
↗
15
6L2421920000
Rod 2
Loading…
↗
16
902020508800
Washer, plate (666)
Loading…
↗
17
914902001000
Pin, cotter
Loading…
↗
18
6L2485310000
Bracket, remote control 1
Loading…
↗
19
682485385000
Clamp, cable
Loading…
↗
20
916903001200
Pin, spring
Loading…
↗
21
9010506M2300
Bolt (6g1)
Loading…
↗
22
6G8263630000
End, wire 1
Loading…
↗
23
6G8263640000
End, wire 2
Loading…
↗
25
689485110200
Hook, steering
Loading…
↗
26
901851005100
Nut, self-locking
Loading…
↗
27
929901060000
Washer, plate
Loading…
↗
28
973751004000
Bolt, hexagon deep recess
Loading…
↗
