25DMH (1985)
Remote Control

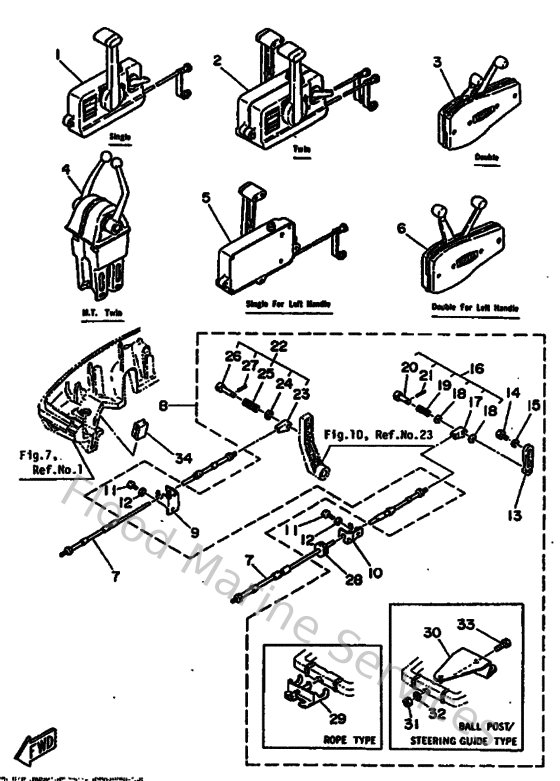

Diagram: Remote Control
Parts List
Reference
Description
Price
1
701481011000
Remote control assembly
Loading…
↗
2
701481102200
Remote Control assembly
Loading…
↗
5
701481021000
Remote control assembly
Loading…
↗
7
701483200000
Cable, Remote Control L=12F
Loading…
↗
9
689485315100
Bracket, remote control 1
Loading…
↗
10
656485325000
Bracket, remote control 2
Loading…
↗
11
973950601600
Bolt, hexagon deep recess
Loading…
↗
12
929900660000
Washer, plain (646)
Loading…
↗
13
6484853450EJ
Throttle Lever, Con Control
Loading…
↗
14
970800601200
Bolt(gh1)
Loading…
↗
16
679483409000
Cable end assembly
Loading…
↗
17
679483469000
Cable End Remote Control 3
Loading…
↗
18
929900820000
Ybs66-8 washer, plain
Loading…
↗
19
905011026400
Spring 6174833290
Loading…
↗
20
617483619100
Hook, cable
Loading…
↗
21
916903001200
Pin, spring
Loading…
↗
22
648483305000
Cable end assembly
Loading…
↗
23
648483465000
Cable,end remote control 3
Loading…
↗
25
905011007100
Spring 6044833200
Loading…
↗
28
904802203900
Grommet 648485655000
Loading…
↗
29
700485101200
Hook steering assembly
Loading…
↗
30
689485110000
Hook, steering
Loading…
↗
31
901851002700
Nut, self-locking
Loading…
↗
32
929901060000
Washer, plate
Loading…
↗
33
973751004000
Bolt, hexagon deep recess
Loading…
↗
34
676427244000
Grommet 1
Loading…
↗
