9.9DMH (1988)
Remote Control

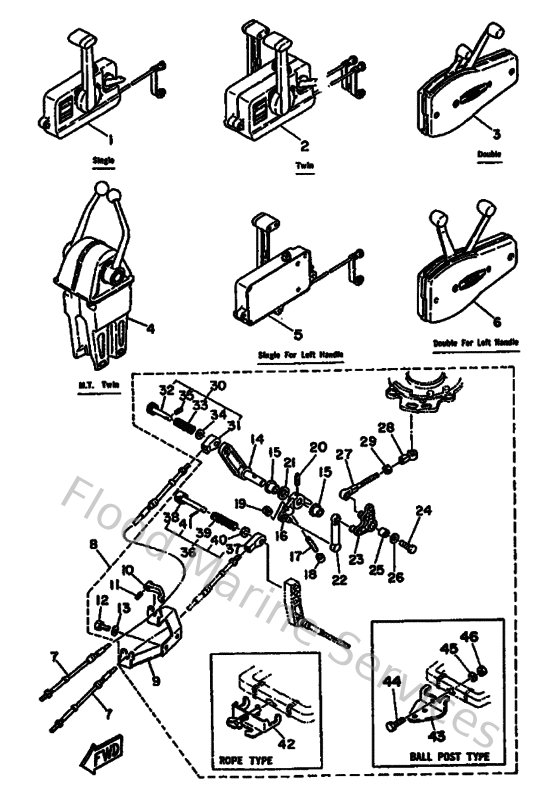

Diagram: Remote Control
Parts List
Reference
Description
Price
1
701481011000
Remote control assembly
Loading…
↗
2
701481102200
Remote Control assembly
Loading…
↗
5
701481021000
Remote control assembly
Loading…
↗
7
MARCABLE09SC
Remote Control Cable 9' :ob
Loading…
↗
9
682485315100
Bracket, Remote Control
Loading…
↗
10
682485385000
Clamp, cable
Loading…
↗
11
916903001200
Pin, spring
Loading…
↗
12
973950601600
Bolt, hexagon deep recess
Loading…
↗
13
929900660000
Washer, plain (646)
Loading…
↗
14
682416315094
Lever Magneto Control 1
Loading…
↗
15
903861000900
Bushing 6484418600
Loading…
↗
16
682416325094
Lever, Magneto Control 2
Loading…
↗
17
9011306M0100
Bolt
Loading…
↗
18
663441940000
Cap
Loading…
↗
19
9538R0670000
Nut
Loading…
↗
20
916904001800
Pin spring(664)
Loading…
↗
21
902021002400
Washer plate 648441880000
Loading…
↗
22
682412385100
Joint, Link 1
Loading…
↗
23
682416330094
Lever, Magneto Control 3
Loading…
↗
24
970800602000
Bolt(7u8)
Loading…
↗
25
9038706M0200
Collar (664)
Loading…
↗
27
682412375000
Joint, link 2
Loading…
↗
28
682412370000
Joint, link 2
Loading…
↗
29
953800570000
Nut (656)
Loading…
↗
30
682483405000
Cable end assembly
Loading…
↗
31
682483445000
Cable End, Remote Control 1
Loading…
↗
32
617483619000
Hook, cable
Loading…
↗
33
905011026400
Spring 6174833290
Loading…
↗
34
929900860000
Washer, plain (663)
Loading…
↗
36
682483305000
Cable end assembly
Loading…
↗
38
617483319000
Hook, cable
Loading…
↗
39
905011007100
Spring 6044833200
Loading…
↗
42
700485101200
Hook steering assembly
Loading…
↗
43
676485111000
Hook, steering
Loading…
↗
44
973751004000
Bolt, hexagon deep recess
Loading…
↗
45
929901060000
Washer, plate
Loading…
↗
46
901851005100
Nut, self-locking
Loading…
↗
