F8BMH (1985)
Remote Control

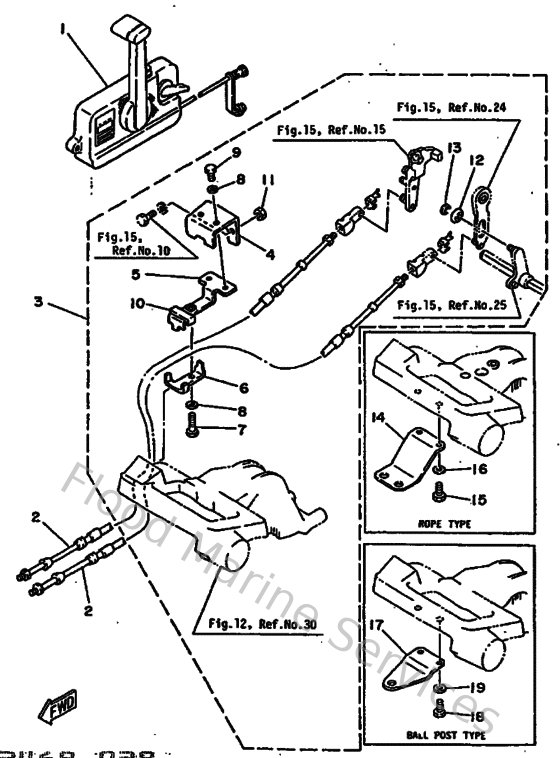

Diagram: Remote Control
Parts List
Reference
Description
Price
1
701481011000
Remote control assembly
Loading…
↗
2
MARCABLE09SC
Remote Control Cable 9' :ob
Loading…
↗
3
6G8485010000
Remote cont. attachment assembly.
Loading…
↗
4
6G8485315000
Grommet
Loading…
↗
5
6G8485325000
Bracket, remote control 2
Loading…
↗
6
6G8485385000
Clamp, cable
Loading…
↗
7
973950603000
Bolt(jf7)
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
970800601200
Bolt(gh1)
Loading…
↗
10
6G8485655000
Grommet
Loading…
↗
11
953800670000
Nut
Loading…
↗
12
9038706M7300
Collar
Loading…
↗
13
990800460000
Circlip (eu0)
Loading…
↗
14
6G8485110000
Hook, steering
Loading…
↗
15
973950601600
Bolt, hexagon deep recess
Loading…
↗
17
6G8485111000
Hook, steering
Loading…
↗
