Yamaha Outboard Parts - Remote Control Assy - 20CMH (1996) | Flood Marine

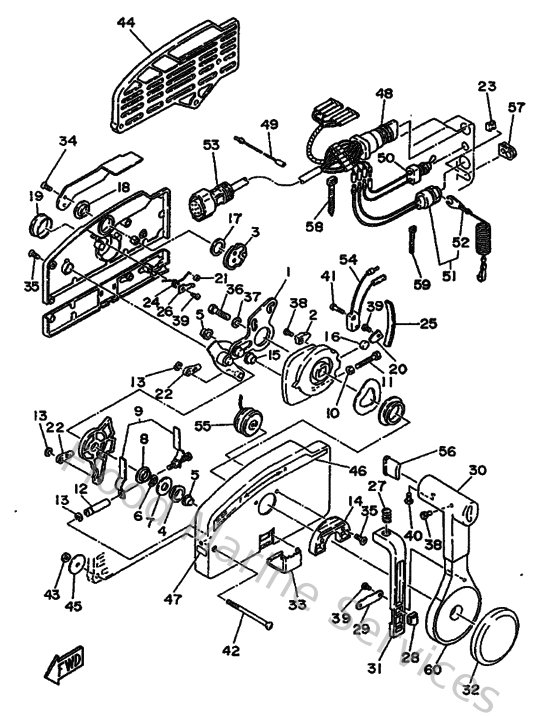

Diagram: Remote Control Assy

Diagram

Parts List

Reference
Description
Price


1
703482301000
Remote control assembly (7p)
Loading…

↗
3
703481530000
Shaft, free accel.
Loading…

↗
4
702482350000
Bushing
Loading…

↗
5
703482730000
Bushing
Loading…

↗
7
703482680000
Spacer 3
Loading…

↗
8
703482630000
Bushing
Loading…

↗
9
703482640000
Throttle, friction
Loading…

↗
10
953800560000
Nut, hexagon (663)
Loading…

↗
12
703482650000
Shaft Friction
Loading…

↗
13
934300602400
Circlip (701)
Loading…

↗
14
703482450000
Plate, lock
Loading…

↗
15
703482520000
Roller, cam
Loading…

↗
16
701482480000
Roller, free accel
Loading…

↗
17
703481980000
Washer, wave 3
Loading…

↗
18
703482430000
Bushing 3
Loading…

↗
20
703481890000
Retainer
Loading…

↗
21
703482340000
Roller, detent
Loading…

↗
22
703483450000
Cable end, remote control 2
Loading…

↗
23
703483580000
Anchor, cable
Loading…

↗
24
703482440000
Spring, free accel.
Loading…

↗
25
703482380000
Spring, detent
Loading…

↗
26
703482460000
Spacer 1
Loading…

↗
27
703482270000
Spring, neutral lock
Loading…

↗
29
703482260000
Plate, stopper
Loading…

↗
30
703482220000
Grip, control lever
Loading…

↗
31
703482230000
Lock, neutral
Loading…

↗
32
703482250000
Cover
Loading…

↗
33
703482190000
Cover, lead
Loading…

↗
34
987800501200
Screw(617)
Loading…

↗
35
987800501600
Ybs53-516 screw,flat head
Loading…

↗
36
973800803000
Bolt, hexagon (fj1)
Loading…

↗
37
929900860000
Washer, plain (663)
Loading…

↗
38
985800401000
Screw, pan head (e56)
Loading…

↗
39
985800400600
Screw, pan head (7h3)
Loading…

↗
40
985800501000
Screw, pan head(62x)
Loading…

↗
41
985800301400
Screw, pan head (n151)
Loading…

↗
42
926800609000
Screw
Loading…

↗
43
953800660000
Nut(661)
Loading…

↗
44
703482931000
Spacer, remote control
Loading…

↗
45
701482870000
Washer 1
Loading…

↗
46
703482150000
Graphic
Loading…

↗
48
703825101800
Main Switch
Loading…

↗
49
703825310000
Wire, lead
Loading…

↗
50
688825740000
Switch, choke
Loading…

↗
51
688825750200
Engine stop switch assembly
Loading…

↗
52
682825560000
Lanyard, stop switch
Loading…

↗
53
688825862100
Extension, wire harness
Loading…

↗
54
703825400000
Neutral switch assembly
Loading…

↗
55
703833831100
Buzzer
Loading…

↗
56
703482240000
Cover, control lever
Loading…

↗
57
703482840000
Grommet
Loading…

↗
58
703825910000
Band
Loading…

↗
59
703825920000
Band
Loading…

↗
60
703482210000
Grip
