225GETOL (2001)
Repair Kit 1

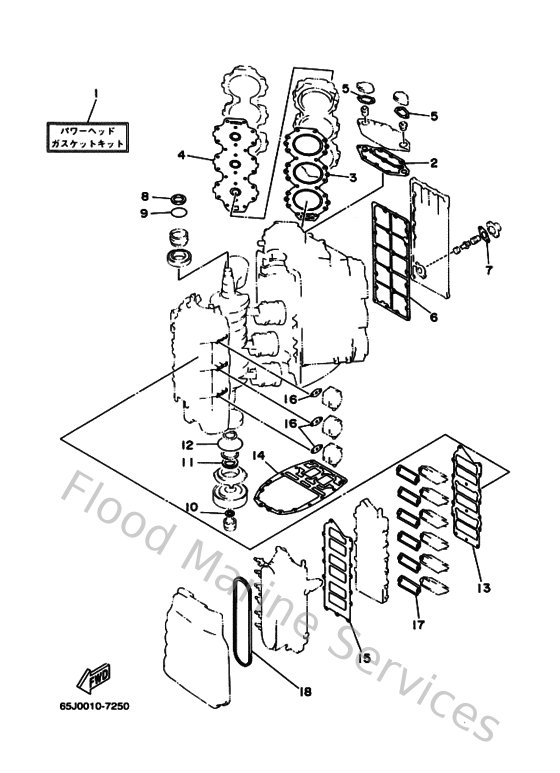

Diagram: Repair Kit 1
Parts List
Reference
Description
Price
1
65LW00010100
Power head gasket kit
Loading…
↗
2
61A11381A000
Gasket 1
Loading…
↗
3
61A11181A200
Gasket, cylinder head 1
Loading…
↗
4
61A11193A200
Gasket, head cover 1
Loading…
↗
5
61A12414A000
Gasket, cover
Loading…
↗
6
61A41112A000
Gasket, exhaust inner cover
Loading…
↗
7
6G511382A100
Gasket 2
Loading…
↗
8
9310240M3800
Oil seal(61a)
Loading…
↗
9
9321054M5400
O-ring (6g1)
Loading…
↗
10
9310422M0700
Oil seal(61a)
Loading…
↗
11
9310240M3600
Oil seal
Loading…
↗
12
9321081MA600
O-ring(61a)
Loading…
↗
13
65L136450000
Gasket, manifold 1
Loading…
↗
14
61A45113A000
Gasket, upper casing
Loading…
↗
15
65L136460000
Gasket, manifold 2
Loading…
↗
16
65024431A000
Gasket,fuel pump
Loading…
↗
17
61A13621A000
Gasket, valve seat
Loading…
↗
18
65L144830000
Gasket
Loading…
↗
