Yamaha Outboard Parts - Repair Kit 1 - 25NMHO (1996) | Flood Marine

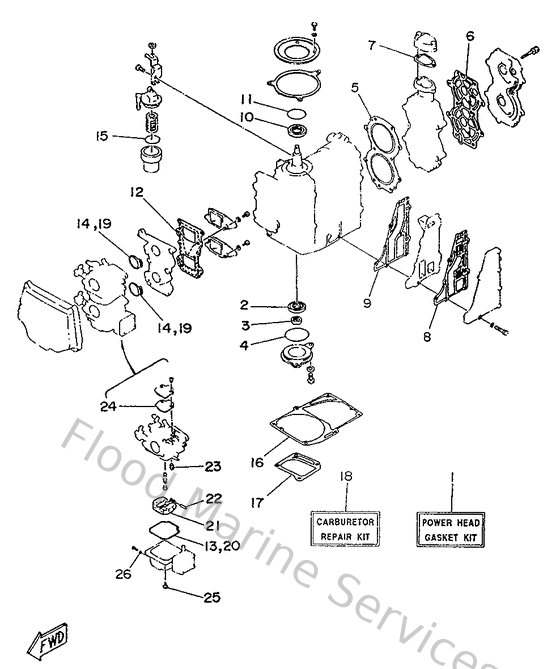

Diagram: Repair Kit 1

Diagram

Parts List

Reference
Description
Price


1
6L2W00010300
Power head gasket kit
Loading…

↗
5
6L211181A100
Gasket, cylinder head 1
Loading…

↗
6
6L211193A100
Gasket, head cover 1
Loading…

↗
7
61A12414A000
Gasket, cover
Loading…

↗
8
6L241114A100
Gasket, exhaust outer cover
Loading…

↗
9
6L241112A300
Gasket, exhaust inner cover
Loading…

↗
12
6L2136210000
Gasket, valve seat
Loading…

↗
13
6L2143840000
Gasket, float chamber
Loading…

↗
14
6L2141980000
Gasket
Loading…

↗
16
6L245113A200
Gasket, upper casing
Loading…

↗
17
6L241133A100
Gasket, exhaust manifold 1
Loading…

↗
18
6L2W00930000
Carburetor repair kit
Loading…

↗
21
6L2143850000
Float
Loading…

↗
22
6E5143860100
Pin, float
Loading…

↗
23
6L2143920000
Valve, needle
Loading…

↗
24
6L2143990000
Gasket
Loading…

↗
26
6L2143980000
Gasket
Loading…

↗
