30AMH (1992)
Repair Kit 1

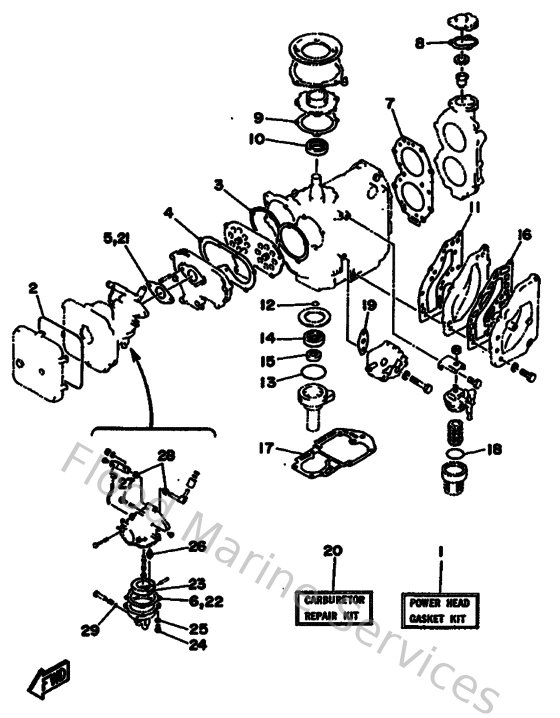

Diagram: Repair Kit 1
Parts List
Reference
Description
Price
1
689W00010400
Gasket Kit
Loading…
↗
2
9321162M2400
O-Ring (689)
Loading…
↗
3
64813621A000
Gasket, valve seat
Loading…
↗
4
64813645A000
Gasket, manifold 1
Loading…
↗
5
64814198A000
Gasket
Loading…
↗
6
648143840100
Gasket,float chamber
Loading…
↗
7
68911181A200
Gasket, cylinder head 1
Loading…
↗
8
65512414A100
Gasket, cover
Loading…
↗
9
68915369A000
Gasket Oil Seal Housing
Loading…
↗
10
9310225M1100
Oil Seal (689)
Loading…
↗
11
68941114A000
Gasket, exhaust outer cover
Loading…
↗
12
932101627500
O-ring
Loading…
↗
13
9321057M0900
O-ring (683)
Loading…
↗
14
9310125M3500
Oil seal(6a4)
Loading…
↗
15
9310116M3600
Oil seal(6a8)
Loading…
↗
16
68941112A000
Gasket, exhaust inner cover
Loading…
↗
17
68945113A100
Gasket, upper casing
Loading…
↗
18
9321037M2500
O-ring (655)
Loading…
↗
19
65024431A000
Gasket,fuel pump
Loading…
↗
20
689W00930200
Carburetor repair kit
Loading…
↗
23
648143850000
Float
Loading…
↗
24
985800401200
Screw, pan head (686)
Loading…
↗
25
929900410000
Ybs67-4 washer, spring
Loading…
↗
26
648143901400
Needle valve assembly
Loading…
↗
27
647143230000
Screw, air adjusting
Loading…
↗
28
903860500200
Bush 626412910000
Loading…
↗
29
646143970000
Ring O (664)
Loading…
↗
