Yamaha Outboard Parts - Repair Kit 1 - 30DMHO (1989) | Flood Marine

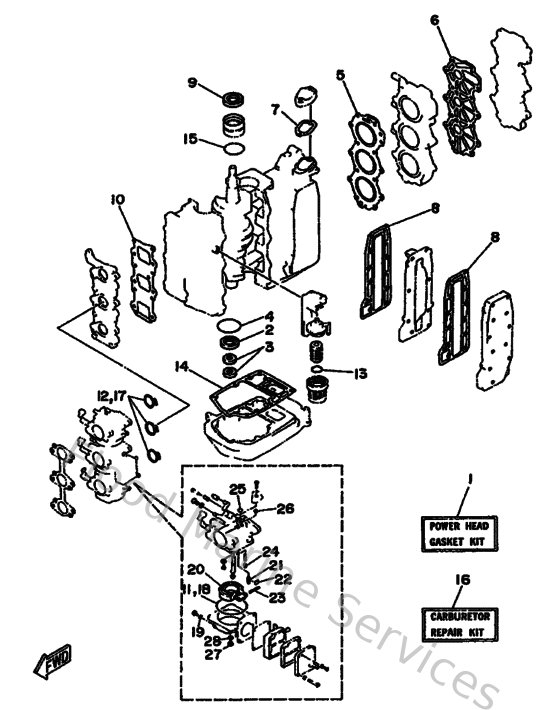

Diagram: Repair Kit 1

Diagram

Parts List

Reference
Description
Price


1
6J8W00010000
Powerhead gasket kit
Loading…

↗
2
9310125M2800
Oil seal(6j8)
Loading…

↗
3
9310416M0400
Oil seal(6a8)
Loading…

↗
4
9321056M8000
O-ring(6j8)
Loading…

↗
5
6J8111810000
Gasket, cylinder head 1
Loading…

↗
6
6J811193A100
Gasket, head cover 1
Loading…

↗
7
6H4124140000
Gasket, cover
Loading…

↗
8
6J8411140000
Gasket, exhaust outer cover
Loading…

↗
9
9310226M2700
Oil seal(6j8)
Loading…

↗
10
6J8136210000
Gasket, valve seat
Loading…

↗
11
6J8149840000
Gasket, float chamber
Loading…

↗
12
6J8141980000
Gasket
Loading…

↗
13
9321037M2500
O-ring (655)
Loading…

↗
14
6J8451130000
Gasket, upper casing
Loading…

↗
15
932104215900
O-ring (647)
Loading…

↗
16
6J8W00930000
Carburetor rerair kit
Loading…

↗
19
6J8149950000
Gasket, drin screw
Loading…

↗
20
6J8149850000
Float
Loading…

↗
21
6E5145460000
Valve, needle
Loading…

↗
22
6J8141590000
Clip
Loading…

↗
23
6J8145480000
Pin, float arm
Loading…

↗
24
6J8149660000
Plug
Loading…

↗
25
6J8141260000
Plug
Loading…

↗
26
6J8141180000
Plug
Loading…

↗
27
985800401200
Screw, pan head (686)
Loading…

↗
28
929030410000
Ybs67-4 washer, spring
Loading…

↗
