Yamaha Outboard Parts - Repair Kit 1 - 30GMH (1998) | Flood Marine

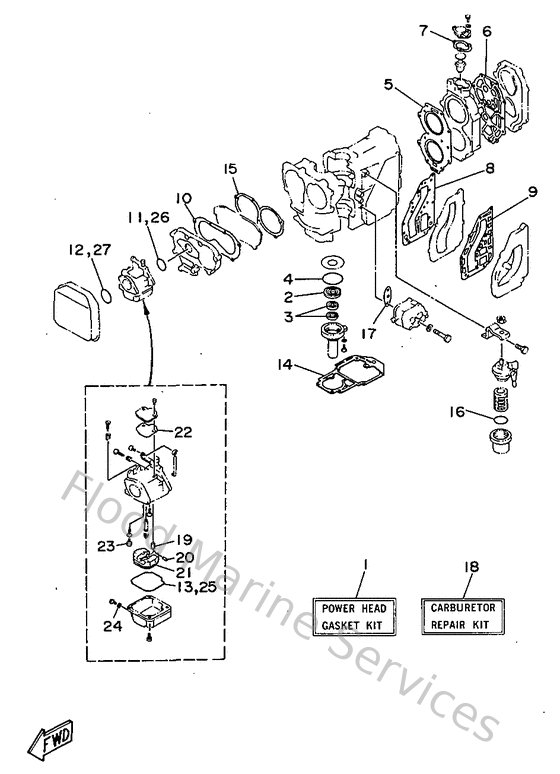

Diagram: Repair Kit 1

Diagram

Parts List

Reference
Description
Price


1
61TW00010200
Gasket kit
Loading…

↗
2
9310225M2800
Oil seal(6h4)
Loading…

↗
3
9310116M3600
Oil seal(6a8)
Loading…

↗
4
9321057M0900
O-ring (683)
Loading…

↗
5
61N11181A100
Gasket, cylinder head 1
Loading…

↗
6
61T11193A000
Gasket, head cover 1
Loading…

↗
7
65512414A100
Gasket, cover
Loading…

↗
8
6K841122A100
Gasket, exhaust inner cover
Loading…

↗
9
6K841124A100
Gasket, exhaust outer cover
Loading…

↗
10
64813645A000
Gasket, manifold 1
Loading…

↗
11
61N141980000
Gasket
Loading…

↗
12
932104065900
O-ring(36y)
Loading…

↗
13
6L2143840000
Gasket, float chamber
Loading…

↗
14
61T45113A000
Gasket, upper casing
Loading…

↗
15
64813621A100
Gasket, valve seat
Loading…

↗
16
932103273800
O-ring(1wg)
Loading…

↗
17
65024431A000
Gasket,fuel pump
Loading…

↗
18
61NW00930000
Carburetor repair kit
Loading…

↗
19
61N143920000
Valve, needle
Loading…

↗
20
6E5143860100
Pin, float
Loading…

↗
21
6L2143850000
Float
Loading…

↗
22
6L2143990000
Gasket
Loading…

↗
23
50M143550000
Plug
Loading…

↗
24
6L2143980000
Gasket
Loading…

↗
