90AETOL (1987)
Repair Kit 1

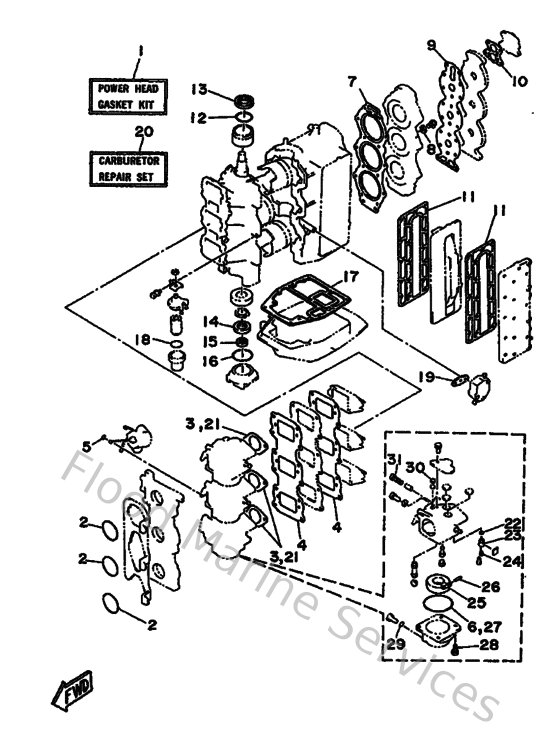

Diagram: Repair Kit 1
Parts List
Reference
Description
Price
1
6H1W00010000
Gasket kit, power unit
Loading…
↗
2
932104604400
O-ring
Loading…
↗
3
688141980000
Gasket
Loading…
↗
4
68813621A100
Gasket, valve seat
Loading…
↗
5
932100326100
O-ring (663)
Loading…
↗
6
676149840000
Gasket, float chamber
Loading…
↗
7
688111810200
Gasket, cylinder head 1
Loading…
↗
8
904301411500
Gasket (663)
Loading…
↗
9
688111930100
Gasket, head cover 1
Loading…
↗
10
688124140000
Gasket, cover
Loading…
↗
11
68841112A000
Gasket, exhaust inner cover
Loading…
↗
12
9321046M1600
O-ring (688)
Loading…
↗
13
9310236M0200
Oil seal(52w)
Loading…
↗
14
9310230M0500
Oil seal (688)
Loading…
↗
15
9310420M0200
Oil seal (688)
Loading…
↗
16
932106226900
Ring, o(663)
Loading…
↗
17
688451130000
Gasket, upper casing
Loading…
↗
18
9321037M2500
O-ring (655)
Loading…
↗
19
650244310000
Gasket,fuel pump
Loading…
↗
20
6H1W00930100
Carburetor repair kit
Loading…
↗
22
932100422800
O-ring (371)
Loading…
↗
23
692145900100
Needle valve assembly
Loading…
↗
24
676141860000
Pin, valve
Loading…
↗
25
676149850100
Float comp
Loading…
↗
26
688145480000
Pin, arm
Loading…
↗
28
979800411400
Screw, pan head(ga5)
Loading…
↗
29
932100423000
O-ring (371)
Loading…
↗
30
663141260000
Packing
Loading…
↗
31
692149230000
Screw, adjusting
