F4AMH (2001)
Repair Kit 1

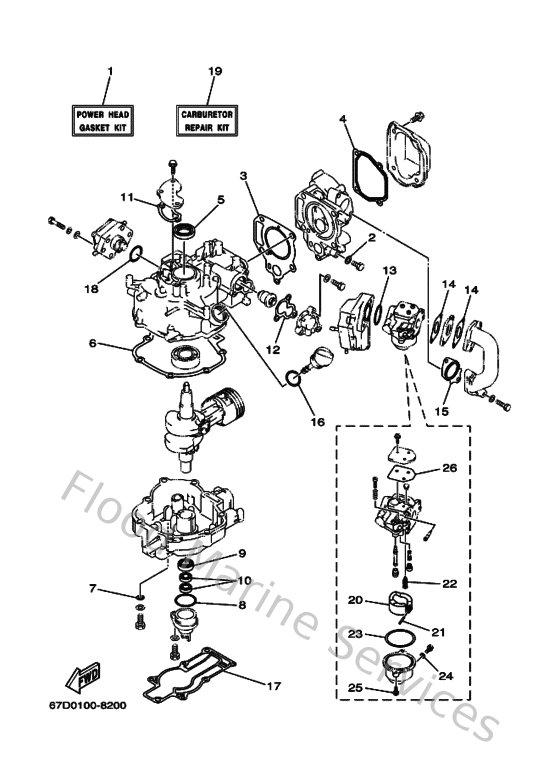

Diagram: Repair Kit 1
Parts List
Reference
Description
Price
1
67DW00010000
Power head gasket kit
Loading…
↗
2
904300814300
Gasket (256-11198-00)
Loading…
↗
3
67D11181A000
Gasket, cylinder head 1
Loading…
↗
4
67D11193A000
Gasket head cover
Loading…
↗
5
931022509000
Oil seal (25x40x5-256)
Loading…
↗
6
67D11351A000
Gasket, cylinder
Loading…
↗
7
904300820900
Gasket(3gh)
Loading…
↗
8
932103553700
O-ring
Loading…
↗
9
931022010800
Oil seal
Loading…
↗
10
9310110M2500
Oil seal(6e0)
Loading…
↗
11
67D11169A000
Gasket, Breather Cover
Loading…
↗
12
67D12414A000
Gasket, cover
Loading…
↗
13
9321031MJ500
O-ring
Loading…
↗
14
67D13646A000
Gasket Int. Manifold
Loading…
↗
15
67D13645A000
Gasket, Manifold 1
Loading…
↗
16
9321024M7900
O-ring
Loading…
↗
17
67D45113A000
Gasket, upper casing
Loading…
↗
18
9321027ME300
O-ring
Loading…
↗
19
67DW00930000
Carburetor repair kit
Loading…
↗
20
67D143850000
Float
Loading…
↗
21
67D143860000
Pin, float
Loading…
↗
22
67D145460000
Valve, needle
Loading…
↗
23
67D149840000
Gasket, float chamber
Loading…
↗
24
6J8149590000
Gasket, drin screw
Loading…
↗
25
979800411200
Screw, pan head (686)
Loading…
↗
26
67D145360000
Gasket
Loading…
↗
