F50AE (2001)
Repair Kit 1

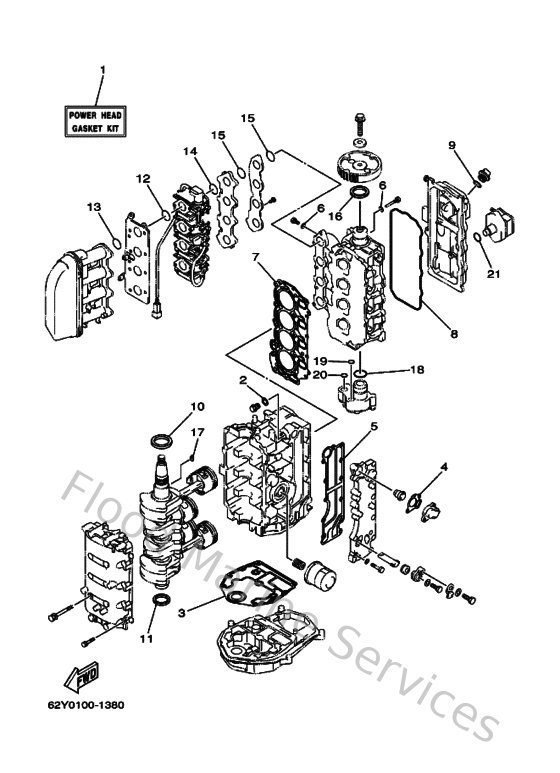

Diagram: Repair Kit 1
Parts List
Reference
Description
Price
1
62YW00011000
Power head gasket kit
Loading…
↗
2
904301411500
Gasket (663)
Loading…
↗
3
67C113510000
Gasket, cylinder
Loading…
↗
4
62Y124140000
Gasket, cover
Loading…
↗
5
6C5411140000
Gasket, exhaust outer cover
Loading…
↗
6
904300601400
Gasket 256113960000
Loading…
↗
7
62Y111810000
Gasket, cylinder head 1
Loading…
↗
8
62Y113560000
Seal, cylinder 2
Loading…
↗
9
9321024M7900
O-ring
Loading…
↗
10
9310243M4200
Oil seal(62y)
Loading…
↗
11
931013500200
Oil seal
Loading…
↗
12
9321035M8600
O-ring(6l2)
Loading…
↗
13
9321038MH300
O-ring(62y)
Loading…
↗
14
9321030MH400
O-ring(62y)
Loading…
↗
16
9310237M4000
Oil seal(62y)
Loading…
↗
17
9028004M0600
Key, woodruff(6a1)
Loading…
↗
18
9321033MH200
O-ring(62y)
Loading…
↗
19
9321012MG900
O-ring(62y)
Loading…
↗
20
932101451500
O-ring (11h)
