Yamaha Outboard Parts - Repair Kit 1 - F8CMH (2001) | Flood Marine

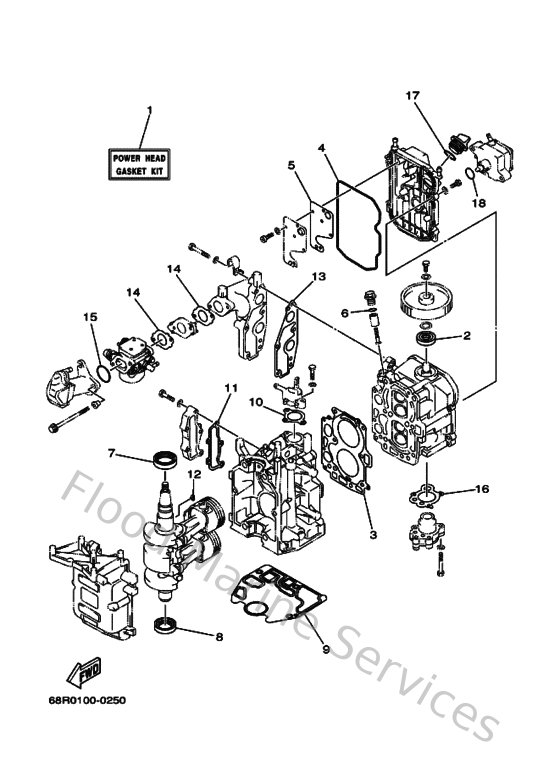

Diagram: Repair Kit 1

Diagram

Parts List

Reference
Description
Price


1
6AUW00010000
Power head gasket kit
Loading…

↗
2
9310218M2100
Oil seal (6g8)
Loading…

↗
3
68T111810000
Gasket, cylinder head 1
Loading…

↗
4
68T113560000
Seal, cylinder 2
Loading…

↗
5
68T11169A000
Gasket, breather cover
Loading…

↗
6
9321013M6300
O-ring (6g8)
Loading…

↗
7
9310230M2200
Oil seal (6g8)
Loading…

↗
8
9310125M6900
Oil seal
Loading…

↗
9
68T113510000
Gasket, cylinder
Loading…

↗
10
6G812414A000
Gasket, cover
Loading…

↗
11
68T41114A000
Gasket, exhaust outer cover
Loading…

↗
12
902800301700
Key woodruff 146115450000
Loading…

↗
13
68T136450000
Gasket, manifold 1
Loading…

↗
14
68T13646A000
Gasket, manifold 2
Loading…

↗
15
9321031MJ500
O-ring
Loading…

↗
16
68T133290000
Gasket, pump cover
Loading…

↗
17
932102480000
O-ring
Loading…

↗
18
9321020M6500
O-ring
Loading…

↗
