Yamaha Outboard Parts - Repair Kit 1 - LZ200NETO (2001) | Flood Marine

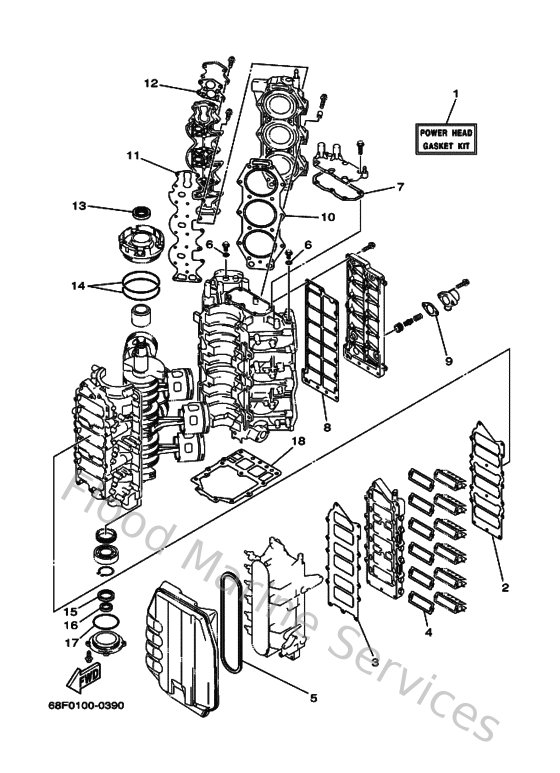

Diagram: Repair Kit 1

Diagram

Parts List

Reference
Description
Price


1
68FW00010000
Power head gasket kit
Loading…

↗
2
65L136450000
Gasket, manifold 1
Loading…

↗
3
65L136460000
Gasket, manifold 2
Loading…

↗
4
61A13621A000
Gasket, valve seat
Loading…

↗
5
65L144830000
Gasket
Loading…

↗
6
904301411500
Gasket (663)
Loading…

↗
7
68F113810000
Gasket 1
Loading…

↗
8
68F411140000
Gasket, exhaust outer cover
Loading…

↗
9
6G511382A100
Gasket 2
Loading…

↗
10
68F111810000
Gasket, cylinder head 1
Loading…

↗
11
68F111930200
Gasket, head cover 1
Loading…

↗
12
68812414A100
Gasket, cover
Loading…

↗
13
9310240M1400
Oil seal(61a)
Loading…

↗
14
932110400100
O-ring
Loading…

↗
15
9310235M6100
Oil seal
Loading…

↗
16
9310122M1500
Oil seal (6e5)
Loading…

↗
17
9321074M3500
O-ring (6e5)
Loading…

↗
18
68F451130000
Gasket, upper casing
Loading…

↗
