P200ETOL (1991)
Repair Kit 1

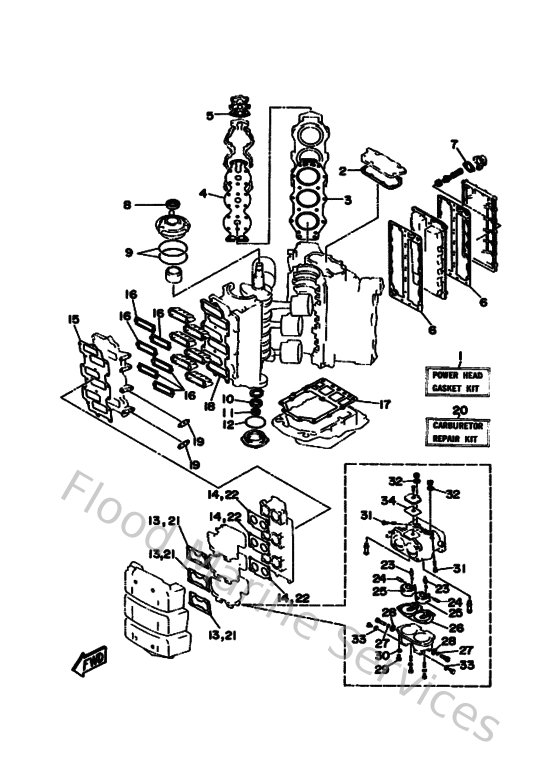

Diagram: Repair Kit 1
Parts List
Reference
Description
Price
1
6K7W00010200
Gasket Kit
Loading…
↗
2
6E5113810000
Gasket 1
Loading…
↗
3
6G5111810100
Gasket, cylinder head 1
Loading…
↗
4
6G511193A200
Gasket, head cover 1
Loading…
↗
5
688124140000
Gasket, cover
Loading…
↗
6
6G5411120000
Gasket, exhaust inner cover
Loading…
↗
7
6G511382A100
Gasket 2
Loading…
↗
8
9310240M1400
Oil seal(61a)
Loading…
↗
9
932110438400
O-ring (705)
Loading…
↗
10
9310235M1300
Oil seal (6e5)
Loading…
↗
11
9310122M1500
Oil seal (6e5)
Loading…
↗
12
9321074M3500
O-ring (6e5)
Loading…
↗
13
6K7144830000
Gasket
Loading…
↗
14
6E5141980000
Gasket
Loading…
↗
15
6K7136450000
Gasket Manifold 1
Loading…
↗
16
6K713621A100
Gasket, valve seat
Loading…
↗
17
6G5451130000
Gasket, upper casing
Loading…
↗
18
6K7136460000
Gasket, manifold 2
Loading…
↗
19
65024431A000
Gasket,fuel pump
Loading…
↗
20
6K7W00930200
Carburetor repair kit
Loading…
↗
23
6E5145460000
Valve, needle
Loading…
↗
24
6E5143860200
Pin, float
Loading…
↗
25
6E5143850200
Float
Loading…
↗
26
6E5143840300
Gasket, float chamber
Loading…
↗
27
6E5149970000
O-ring
Loading…
↗
28
6E5143980100
Gasket
Loading…
↗
29
985800501600
Screw, pan head(6b0)
Loading…
↗
30
929900510000
Ybs67-5 washer, spring
Loading…
↗
31
6E5143230300
Screw, air adjusting
Loading…
↗
32
6E5149790000
Gasket
Loading…
↗
33
6J8149950000
Gasket, drin screw
Loading…
↗
34
6E5149590000
Gasket
