P200ETOL (1993)
Repair Kit 1

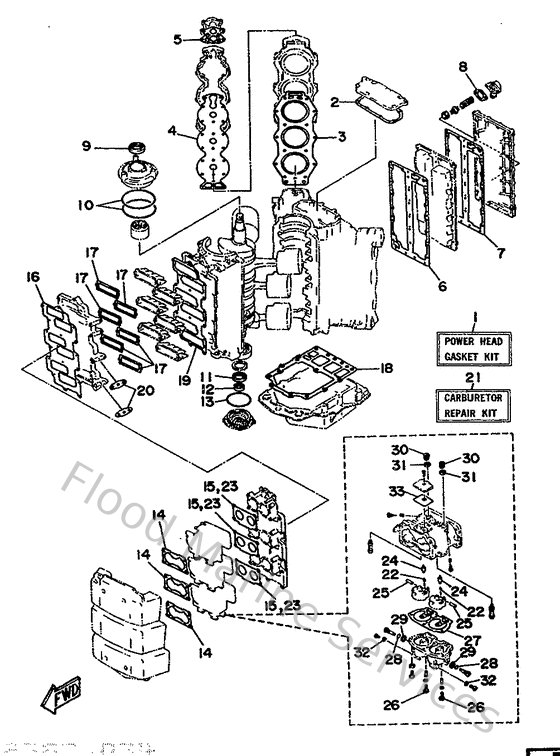

Diagram: Repair Kit 1
Parts List
Reference
Description
Price
1
6K7W00010400
Power Head Gasket Kit
Loading…
↗
2
6E511381A100
Gasket 1
Loading…
↗
3
6G511181A300
Gasket, cylinder head 1
Loading…
↗
4
6G511193A000
Gasket, head cover 1
Loading…
↗
5
68812414A100
Gasket, cover
Loading…
↗
6
6G541112A100
Gasket, exhaust inner cover
Loading…
↗
7
6G541114A000
Gasket, exhaust inner cover
Loading…
↗
8
6G511382A100
Gasket 2
Loading…
↗
9
9310240M3800
Oil seal(61a)
Loading…
↗
10
932110438400
O-ring (705)
Loading…
↗
11
9310235M1300
Oil seal (6e5)
Loading…
↗
12
9310122M1500
Oil seal (6e5)
Loading…
↗
13
9321074M3500
O-ring (6e5)
Loading…
↗
14
6K7144830000
Gasket
Loading…
↗
15
6E514198A100
Gasket
Loading…
↗
16
6K713645A200
Gasket Manifold 1
Loading…
↗
17
6K713621A100
Gasket, valve seat
Loading…
↗
18
6G545113A000
Gasket, upper casing
Loading…
↗
19
6K713646A200
Gasket, manifold 2
Loading…
↗
20
65024431A000
Gasket,fuel pump
Loading…
↗
21
6E5W00930600
Carburetor repair kit
Loading…
↗
22
6E5141590000
Clip
Loading…
↗
24
6E5145460000
Valve, needle
Loading…
↗
25
6E5143860200
Pin, float
Loading…
↗
26
6E5143940000
Valve, Drain
Loading…
↗
27
6E5143840300
Gasket, float chamber
Loading…
↗
28
6E5149970000
O-ring
Loading…
↗
29
6E5143980100
Gasket
Loading…
↗
30
6E5143280100
Plug
Loading…
↗
31
6E5149790000
Gasket
Loading…
↗
32
6J8149950000
Gasket, drin screw
Loading…
↗
33
6E5149590000
Gasket
Loading…
↗
