Yamaha Outboard Parts - Repair Kit 2 - 115CETOL (1992) | Flood Marine

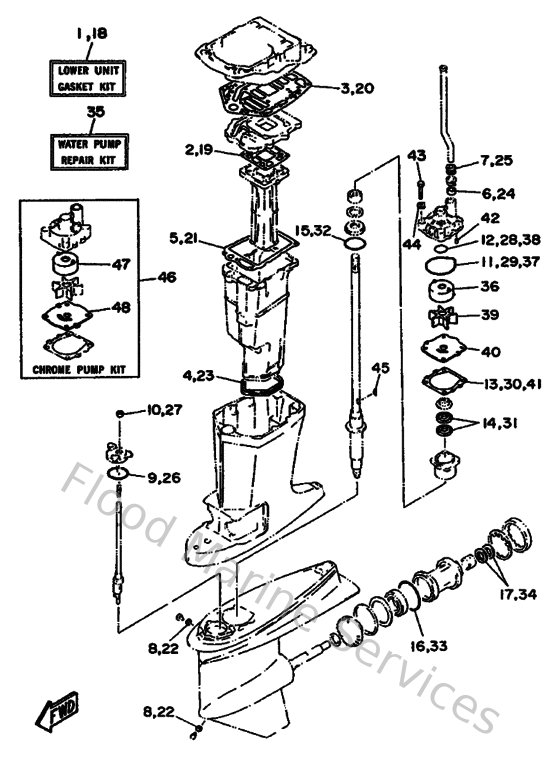

Diagram: Repair Kit 2

Diagram

Parts List

Reference
Description
Price


1
6E5W00015100
Gasket kit, lower unit
Loading…

↗
2
6E541134A000
Gasket, exhaust manifold
Loading…

↗
3
6G545114A000
Gasket, upper casing
Loading…

↗
4
6E5451230000
Gasket, muffler
Loading…

↗
5
6E541135A000
Gasket, exhaust manifold
Loading…

↗
6
6E5443650000
Damper, water seal 1
Loading…

↗
7
6E5443660000
Damper, water seal 2
Loading…

↗
8
904300802000
Gasket
Loading…

↗
9
932105867700
O-ring(47x)
Loading…

↗
10
931060901400
Oil seal
Loading…

↗
11
9321086M3800
O-ring (6e5)
Loading…

↗
12
9321037M6700
O-ring (6g8)
Loading…

↗
13
6E544315A000
Gasket,water pump
Loading…

↗
14
9310128M1600
Oil seal (6e5)
Loading…

↗
15
932105453400
O-ring (70e)
Loading…

↗
16
9321086M3900
O-ring (6e5)
Loading…

↗
17
9310130M1700
Oil seal (6e5)
Loading…

↗
18
6F3W00012100
Gasket kit, lower unit
Loading…

↗
19
6G541134A100
Gasket, exhaust manifold
Loading…

↗
35
6E5W00780100
Water pump repair kit
Loading…

↗
36
6E5443220000
Insert, cartridge
Loading…

↗
39
6E5443520000
Impeller
Loading…

↗
40
6E5443230000
Outer plate, cartridge
Loading…

↗
42
936061201900
Pin, dowel (614)
Loading…

↗
43
970950804500
Bolt, hexagon
Loading…

↗
44
9020908M0200
Washer, plate (688)
Loading…

↗
45
9028004M0500
Key, woodruff (6e5)
Loading…

↗
46
6E5W00780A00
Water Pump Repair Kit
Loading…

↗
47
6E5443224100
Insert, Cartridge
Loading…

↗
48
6E5443234000
Outer plate, cartridge
Loading…

↗
