15FWH (1998)
Repair Kit 2

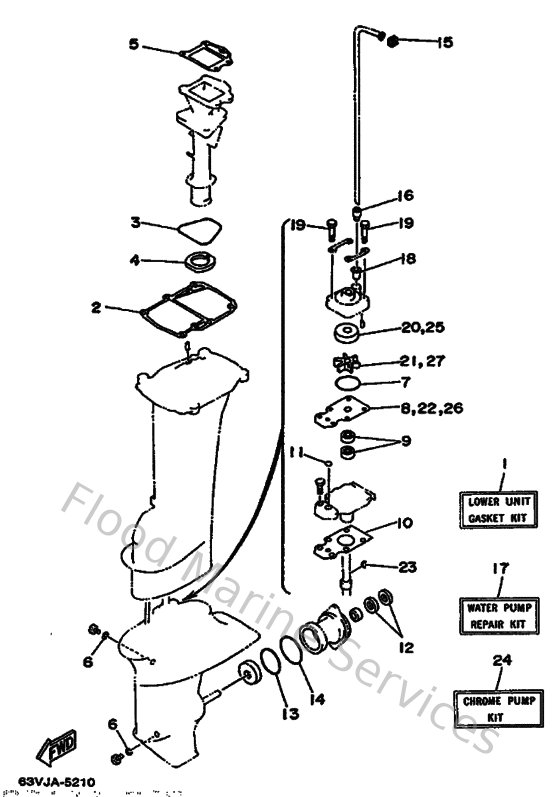

Diagram: Repair Kit 2
Parts List
Reference
Description
Price
1
63VW00012100
Gasket kit
Loading…
↗
2
63V45113A100
Gasket, upper casing
Loading…
↗
3
9321071MH600
O-ring(63v)
Loading…
↗
4
63V411350000
Gasket, exhaust manifold
Loading…
↗
5
63V41133A100
Gasket, exhaust manifold 1
Loading…
↗
6
904300802000
Gasket
Loading…
↗
7
932104470400
O-ring(55x)
Loading…
↗
8
63V443230000
Outer plate, cartridge
Loading…
↗
9
931012004800
Oil seal (20x30x6-648)
Loading…
↗
10
63V45315A000
Packing, lower casing
Loading…
↗
11
9321006ME600
O-ring
Loading…
↗
12
931011705400
Oil seal (17x30x6-650)
Loading…
↗
13
9321057M0900
O-ring (683)
Loading…
↗
14
9321056M8000
O-ring(6j8)
Loading…
↗
15
63V443651000
Damper, water seal 1
Loading…
↗
16
63V443680000
Rubber, water seal 4
Loading…
↗
17
63VW00780000
Water pump repair kit
Loading…
↗
18
647443660000
Damper, water seal 2
Loading…
↗
19
970800804500
Bolt, hexagon
Loading…
↗
20
63V443220000
Insert, cartridge
Loading…
↗
21
63V443520100
Impeller
Loading…
↗
23
664443380000
Key, woodruff
Loading…
↗
24
63VW00780A00
Water pump repair kit
Loading…
↗
25
63V443224000
Insert, cartridge
Loading…
↗
26
63V443234000
Outer plate, cartridge
Loading…
↗
27
63V443520000
Impeller
Loading…
↗
