Yamaha Outboard Parts - Repair Kit 2 - 40HM (1989) | Flood Marine

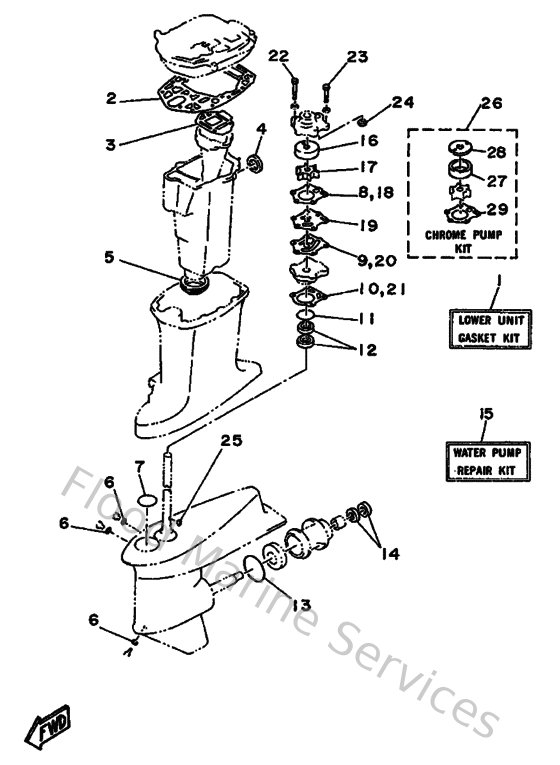

Diagram: Repair Kit 2

Diagram

Parts List

Reference
Description
Price


1
6H4W00012000
Gasket kit, lower unit
Loading…

↗
2
6H4451140000
Gasket, upper casing
Loading…

↗
3
6H441134A000
Gasket, exhaust manifold
Loading…

↗
4
6H4411330000
Gasket, exhaust manifold 1
Loading…

↗
5
663451230000
Gasket, muffler
Loading…

↗
6
904300802000
Gasket
Loading…

↗
7
932104904600
O-ring (620)
Loading…

↗
8
66344315A000
Gasket,water pump 1
Loading…

↗
9
663443240000
Gasket,cartridge outer plate
Loading…

↗
10
663443160000
Gasket,water pump 2
Loading…

↗
11
932104104200
O-ring (132)
Loading…

↗
12
931012307000
Oil seal (663)
Loading…

↗
13
932106626200
O-ring(6h4)
Loading…

↗
14
931012206700
Oil seal (22x36x6-663)
Loading…

↗
15
6H4W0078A000
Water pump rerair kit
Loading…

↗
16
663443220000
Insert, cartridge
Loading…

↗
17
6H4443520100
Impeller
Loading…

↗
18
663443150000
Gasket,water pump 1
Loading…

↗
19
663443230000
Outer plate, cartridge
Loading…

↗
22
970950805500
Bolt, hexagon
Loading…

↗
23
973950804500
Bolt, hexagon
Loading…

↗
24
663443660000
Damper, water seal 2
Loading…

↗
25
902800302400
Key, woodruff(662)
Loading…

↗
26
6H4W00780A00
Chrome pump kit
Loading…

↗
27
670443220100
Insert, cartridge
Loading…

↗
28
670443210000
Inner plate, cartridge
Loading…

↗
29
670443230000
Outer plate, cartridge
Loading…

↗
