50DEMTO (1994)
Repair Kit 2

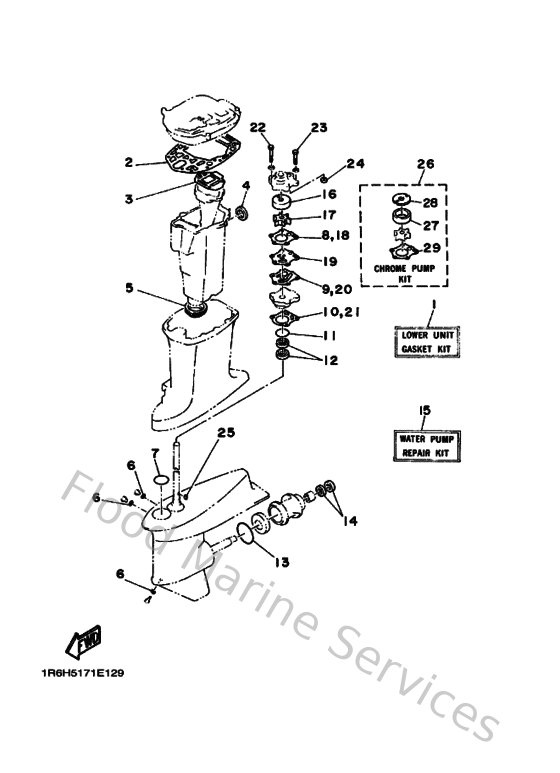

Diagram: Repair Kit 2
Parts List
Reference
Description
Price
1
6H4W00012100
Lower unit gasket kit
Loading…
↗
2
6H445114A100
Gasket, upper casing
Loading…
↗
3
6H441134A000
Gasket, exhaust manifold
Loading…
↗
4
6H4411330000
Gasket, exhaust manifold 1
Loading…
↗
5
663451230000
Gasket, muffler
Loading…
↗
6
904300802000
Gasket
Loading…
↗
7
932104904600
O-ring (620)
Loading…
↗
8
66344315A000
Gasket,water pump 1
Loading…
↗
9
66344324A000
Gasket,cartridge outer plate
Loading…
↗
10
66344316A000
Gasket,water pump 2
Loading…
↗
11
932104104200
O-ring (132)
Loading…
↗
12
931012307000
Oil seal (663)
Loading…
↗
13
9321066M9800
O-ring(6h4)
Loading…
↗
14
931012206700
Oil seal (22x36x6-663)
Loading…
↗
15
6H4W00780100
Water pump repair kit
Loading…
↗
16
663443220000
Insert, cartridge
Loading…
↗
17
6H4443520200
Impeller
Loading…
↗
19
663443230000
Outer plate, cartridge
Loading…
↗
22
973950805500
Bolt, hexagon
Loading…
↗
23
970950804500
Bolt, hexagon
Loading…
↗
24
663443660000
Damper, water seal 2
Loading…
↗
25
902800302400
Key, woodruff(662)
Loading…
↗
26
6H4W00780A00
Chrome pump kit
Loading…
↗
27
670443220100
Insert, cartridge
Loading…
↗
28
670443210000
Inner plate, cartridge
Loading…
↗
29
670443230000
Outer plate, cartridge
Loading…
↗
