Yamaha Outboard Parts - Repair Kit 2 - 75AE (2000) | Flood Marine

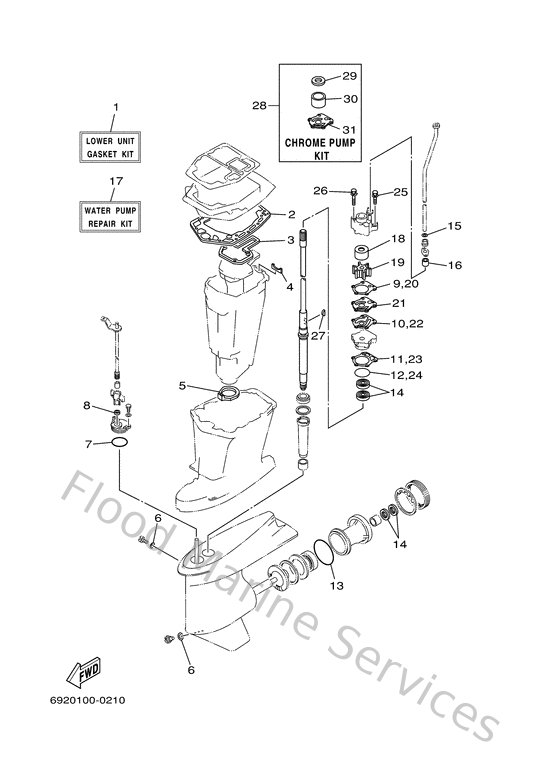

Diagram: Repair Kit 2

Diagram

Parts List

Reference
Description
Price


1
688W00012200
Lower unit gasket kit
Loading…

↗
2
68845114A100
Gasket, upper casing
Loading…

↗
3
68841134A000
Gasket, exhaust manifold
Loading…

↗
4
688411330000
Gasket, exhaust manifold 1
Loading…

↗
5
688451230000
Gasket, muffler
Loading…

↗
6
904300802000
Gasket
Loading…

↗
7
932104904600
O-ring (620)
Loading…

↗
8
931060901400
Oil seal
Loading…

↗
9
68844315A000
Gasket,water pump 1
Loading…

↗
10
68844324A000
Gasket,cartridge 0uter plate
Loading…

↗
11
68844316A000
Gasket,water pump 2
Loading…

↗
12
932104604400
O-ring
Loading…

↗
13
9321085M9700
O-ring(6h1)
Loading…

↗
14
9310125M0300
Oil seal
Loading…

↗
15
904301207200
Gasket
Loading…

↗
16
663443660000
Damper, water seal 2
Loading…

↗
17
692W00780200
Water pump repair kit
Loading…

↗
18
688443220000
Insert, cartridge
Loading…

↗
19
688443520300
Impeller
Loading…

↗
21
688443230000
Outer plate, cartridge
Loading…

↗
25
9011908M1300
Bolt, with washer(6h0)
Loading…

↗
26
9011908M1600
Bolt, with washer(6h0)
Loading…

↗
27
9028004M0400
Key, woodruff (688)
Loading…

↗
28
688W00781A00
Chrome pump kit
Loading…

↗
29
688443214100
Inner plate, cartridge
Loading…

↗
30
688443224100
Insert, cartridge
Loading…

↗
31
688443234000
Outer plate, cartridge
Loading…

↗
