D150HETO (1999)
Repair Kit 2

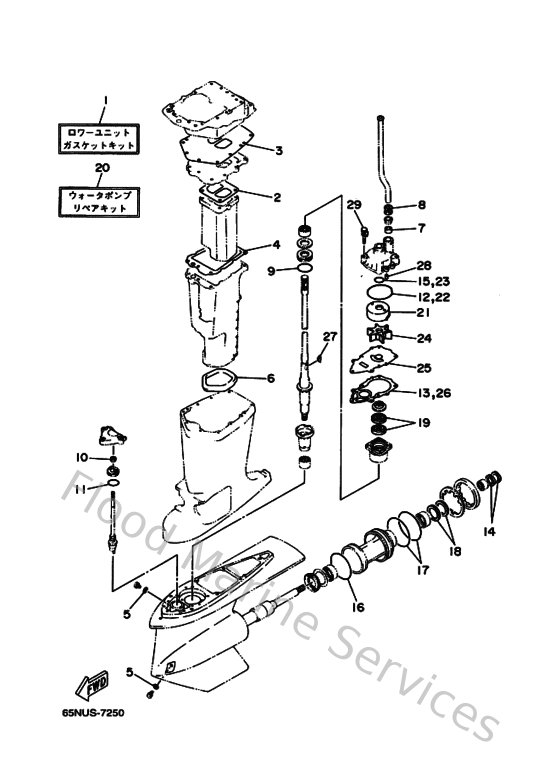

Diagram: Repair Kit 2
Parts List
Reference
Description
Price
1
65NW00012000
Lower unit gasket kit
Loading…
↗
2
6G541134A000
Gasket, exhaust manifold
Loading…
↗
3
6G545114A100
Gasket, upper casing
Loading…
↗
4
6E541135A000
Gasket, exhaust manifold
Loading…
↗
5
904300802000
Gasket
Loading…
↗
6
6E5451230000
Gasket, muffler
Loading…
↗
7
6E5443650000
Damper, water seal 1
Loading…
↗
8
6E5443660000
Damper, water seal 2
Loading…
↗
9
9321055M1400
O-ring (70e)
Loading…
↗
10
931060901400
Oil seal
Loading…
↗
11
9321033M4900
O-ring(6l5)
Loading…
↗
12
9321086M3800
O-ring (6e5)
Loading…
↗
13
65N44315A000
Gasket, water pump
Loading…
↗
14
9310128M6700
Oil seal
Loading…
↗
15
932103716000
O-ring (6g8)
Loading…
↗
16
9321098M3300
O-ring (6a5)
Loading…
↗
17
9321103MH900
O-ring(65n)
Loading…
↗
18
9310145M5900
Oil seal(65n)
Loading…
↗
19
9310128M1600
Oil seal (6e5)
Loading…
↗
20
65NW0078A000
Water pump repair kit
Loading…
↗
21
61A443220200
Insert, cartridge
Loading…
↗
24
6E5443520100
Impeller
Loading…
↗
25
65N443230000
Outer plate, cartridge
Loading…
↗
27
9028004M0500
Key, woodruff (6e5)
Loading…
↗
28
936061201900
Pin, dowel (614)
Loading…
↗
29
9011908M1400
Bolt, with washer
Loading…
↗
