F20AM (1998)
Repair Kit 2

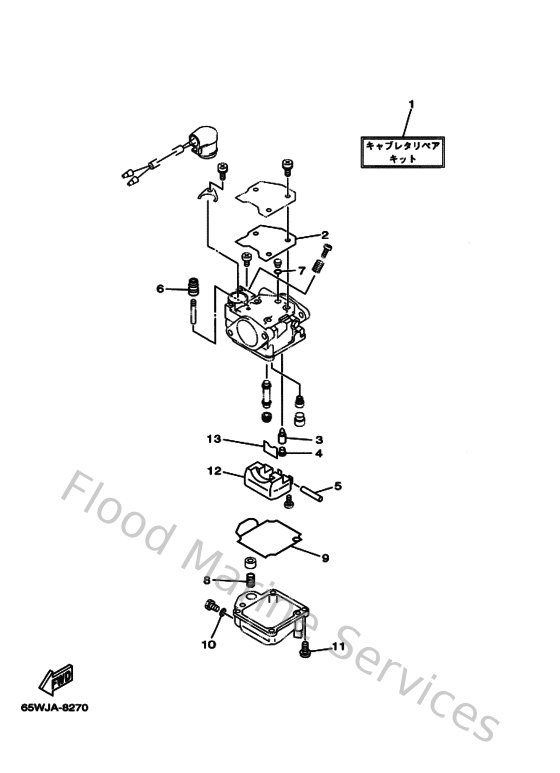

Diagram: Repair Kit 2
Parts List
Reference
Description
Price
1
65WW00930000
Carburetor repair kit
Loading…
↗
2
65W141260000
Gasket
Loading…
↗
3
6G1145460000
Valve, needle
Loading…
↗
4
676141860000
Pin, valve
Loading…
↗
5
6H4145480000
Pin, float arm
Loading…
↗
6
65W143730000
Cover, plunger cap
Loading…
↗
7
65W141470000
O-ring
Loading…
↗
8
65W143350000
Spring, plunger
Loading…
↗
9
65W149480000
Gasket, float chamber
Loading…
↗
10
65W143980000
Washer
Loading…
↗
11
979800411400
Screw, pan head(ga5)
Loading…
↗
12
63V149850000
Float
Loading…
↗
13
663141590000
Clip
