Yamaha Outboard Parts - Repair Kit 2 - F50AE (2001) | Flood Marine

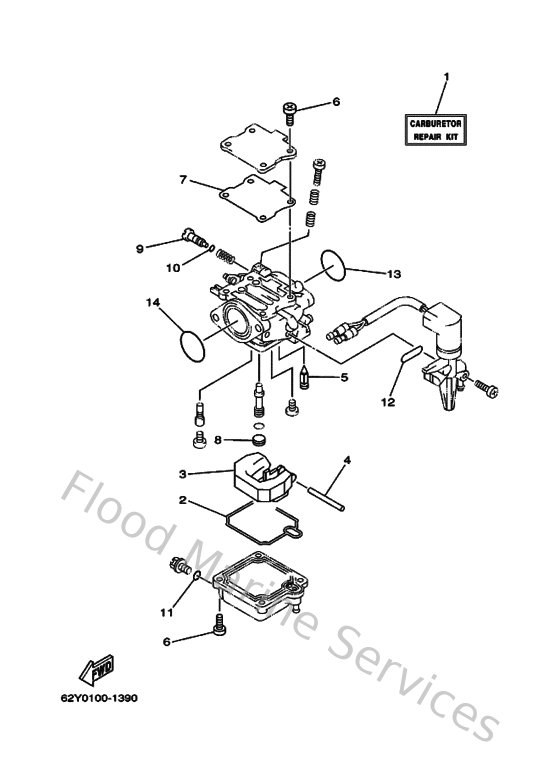

Diagram: Repair Kit 2

Diagram

Parts List

Reference
Description
Price


1
62YW00931000
Carburetor repair kit
Loading…

↗
2
62Y143843000
Gasket, float chamber
Loading…

↗
3
6L2143850000
Float
Loading…

↗
4
6E5143860100
Pin, float
Loading…

↗
5
62Y143920000
Valve, needle
Loading…

↗
6
62Y143210000
Screw, throttle
Loading…

↗
7
62Y143993000
Valve, bimetal
Loading…

↗
8
62Y143553000
Plug
Loading…

↗
9
62Y143233000
Screw, air adjusting
Loading…

↗
10
2T4143970000
O-ring
Loading…

↗
11
652143970000
Ring, o
Loading…

↗
12
62Y143983000
Gasket
Loading…

↗
13
9321030MH400
O-ring(62y)
Loading…

↗
14
9321035M8600
O-ring(6l2)
Loading…

↗
