Yamaha Outboard Parts - Repair Kit 2 - F80AET (2000) | Flood Marine

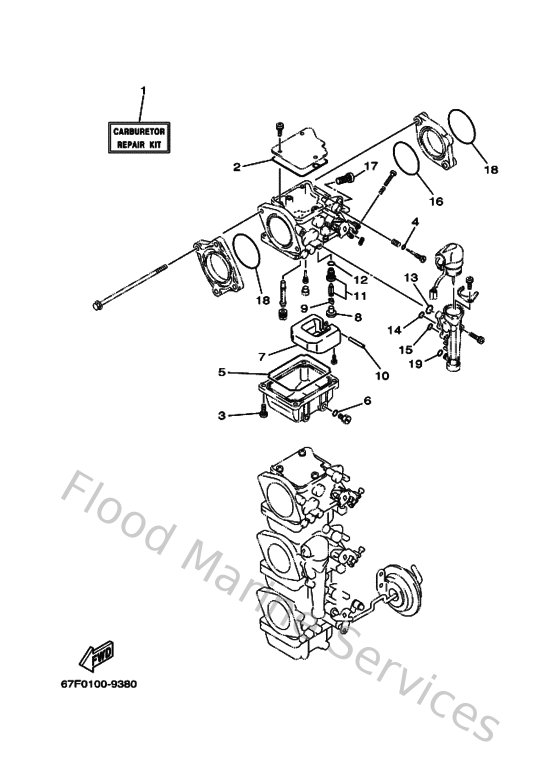

Diagram: Repair Kit 2

Diagram

Parts List

Reference
Description
Price


1
67FW00930000
Carburetor repair kit
Loading…

↗
2
67F141470000
Gasket
Loading…

↗
3
979800411400
Screw, pan head(ga5)
Loading…

↗
4
67F143970000
O-ring
Loading…

↗
5
67F149840000
Gasket, float chamber
Loading…

↗
6
932100423000
O-ring (371)
Loading…

↗
7
6H4149850100
Float
Loading…

↗
8
676141860000
Pin, valve
Loading…

↗
9
663141590000
Clip
Loading…

↗
10
6H4145480000
Pin, float arm
Loading…

↗
11
6H3145900000
Needle valve assembly
Loading…

↗
12
932100422800
O-ring (371)
Loading…

↗
13
67F143980000
O-ring
Loading…

↗
14
67F143981000
O-ring
Loading…

↗
15
67F143982000
O-ring
Loading…

↗
16
67F142390000
Seal
Loading…

↗
17
67F143710000
Element, filter
Loading…

↗
18
9321040M1000
O-ring (682)
Loading…

↗
19
67F143983000
O-ring
Loading…

↗
