Yamaha Outboard Parts - Repair Kit 2 - F8CMH (2001) | Flood Marine

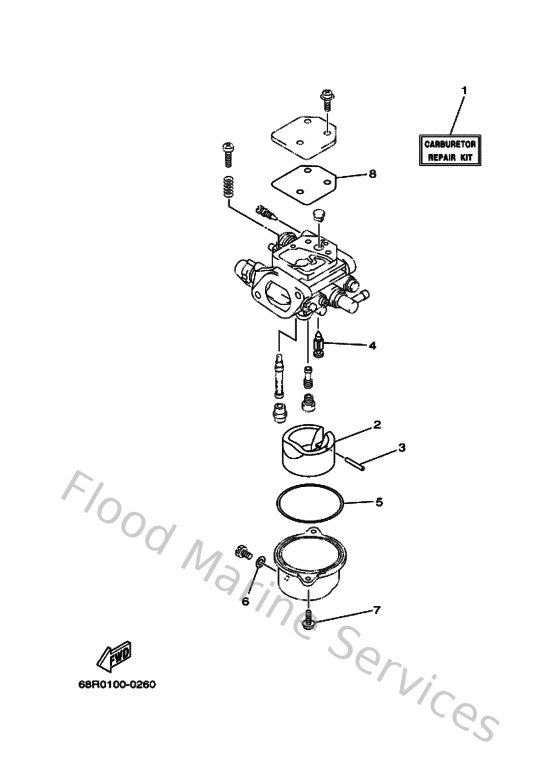

Diagram: Repair Kit 2

Diagram

Parts List

Reference
Description
Price


1
68TW00930000
Carburetor repair kit
Loading…

↗
2
68T143850000
Float
Loading…

↗
3
67D143860000
Pin, float
Loading…

↗
4
68T145460000
Valve, needle
Loading…

↗
5
67D149840000
Gasket, float chamber
Loading…

↗
6
6J8149950000
Gasket, drin screw
Loading…

↗
7
979800411200
Screw, pan head (686)
Loading…

↗
8
67D145360000
Gasket
Loading…

↗
