F9.9BMH (1990)
Repair Kit 2

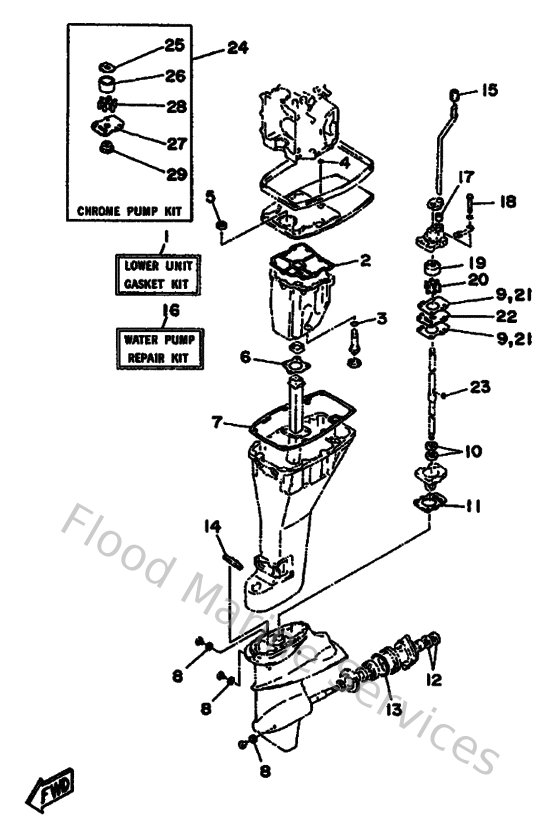

Diagram: Repair Kit 2
Parts List
Reference
Description
Price
1
6G9W00012300
Gasket Kit
Loading…
↗
2
6G8153120100
Gasket, oil pan
Loading…
↗
3
932101677200
O-ring (m124)
Loading…
↗
4
9321008M6000
O-ring (6g8)
Loading…
↗
5
9310113M2700
Oil seal (6g8)
Loading…
↗
6
6G8411330100
Gasket,exhaust manifold 1
Loading…
↗
7
6G845113A000
Gasket,upper casing
Loading…
↗
8
904300802000
Gasket
Loading…
↗
9
682443150000
Gasket,water pump 1
Loading…
↗
10
931022048400
Oil seal
Loading…
↗
11
683453150000
Packing,lower casing
Loading…
↗
12
931011705400
Oil seal (17x30x6-650)
Loading…
↗
13
9321057M0900
O-ring (683)
Loading…
↗
14
682453750100
Damper, seal
Loading…
↗
15
626443650100
Damper, water seal 1
Loading…
↗
16
682W00780000
Water pump repair kit
Loading…
↗
17
682443650000
Damper, water seal 1
Loading…
↗
18
970950604000
Bolt (682)
Loading…
↗
19
682443220000
Insert, cartridge
Loading…
↗
20
682443520100
Impeller
Loading…
↗
21
68244315A000
Gasket,water pump 1
Loading…
↗
22
682443230000
Outer plate, cartridge
Loading…
↗
23
902800302400
Key, woodruff(662)
Loading…
↗
25
682443214000
Inner Plate Cartridge(Chrome)
Loading…
↗
26
682443224000
Insert, cartridge(chrome)
Loading…
↗
27
682443234000
Outer plate, cartridge(chrome)
Loading…
↗
29
682453440000
Cover, oil seal
Loading…
↗
