Yamaha Outboard Parts - Repair Kit 2 - FL115AET (2000) | Flood Marine

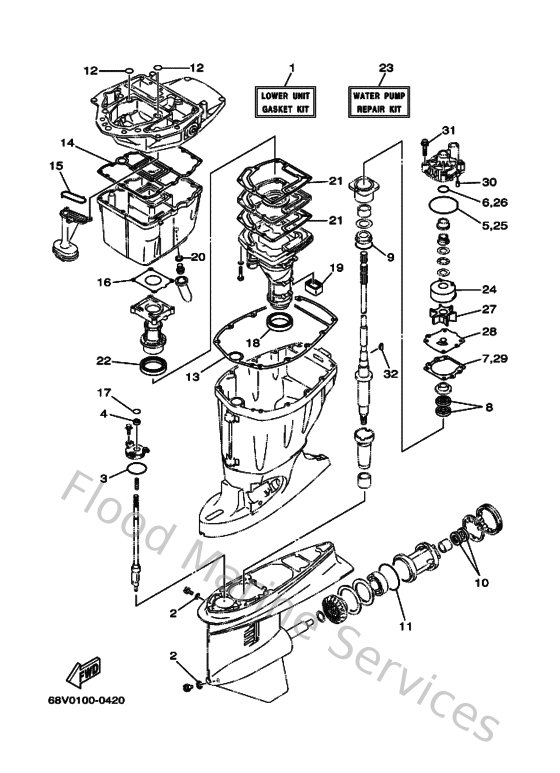

Diagram: Repair Kit 2

Diagram

Parts List

Reference
Description
Price


1
68VW00012000
Lower unit gasket kit
Loading…

↗
2
904300802000
Gasket
Loading…

↗
3
932105814400
O-ring(47x)
Loading…

↗
4
931060901400
Oil seal
Loading…

↗
5
9321086M3800
O-ring (6e5)
Loading…

↗
6
932103716000
O-ring (6g8)
Loading…

↗
7
6E544315A000
Gasket,water pump
Loading…

↗
8
9310128M1600
Oil seal (6e5)
Loading…

↗
9
9321055M1400
O-ring (70e)
Loading…

↗
10
9310130M1700
Oil seal (6e5)
Loading…

↗
11
9321086M3900
O-ring (6e5)
Loading…

↗
12
9321019MJ100
O-ring
Loading…

↗
13
67F451130000
Gasket, upper casing
Loading…

↗
14
67F153120000
Gasket, oil pan
Loading…

↗
15
67F134150000
Seal, oil strainer
Loading…

↗
16
67F41133A100
Gasket, exhaust manifold 1
Loading…

↗
17
932100916500
O-ring
Loading…

↗
18
68V451230000
Gasket, muffler
Loading…

↗
19
67F451270000
Seal
Loading…

↗
20
9043014M0900
Gasket
Loading…

↗
21
67F41134A000
Gasket, exhaust manifold
Loading…

↗
22
67F411380000
Seal, ext. 1
Loading…

↗
23
6N6W00780200
Water pump repair kit
Loading…

↗
24
61A443220200
Insert, cartridge
Loading…

↗
27
6E5443520100
Impeller
Loading…

↗
28
6E5443230000
Outer plate, cartridge
Loading…

↗
30
936061201900
Pin, dowel (614)
Loading…

↗
31
9011908M1400
Bolt, with washer
Loading…

↗
32
9028004M0500
Key, woodruff (6e5)
Loading…

↗
