FT25BE (2000)
Repair Kit 3

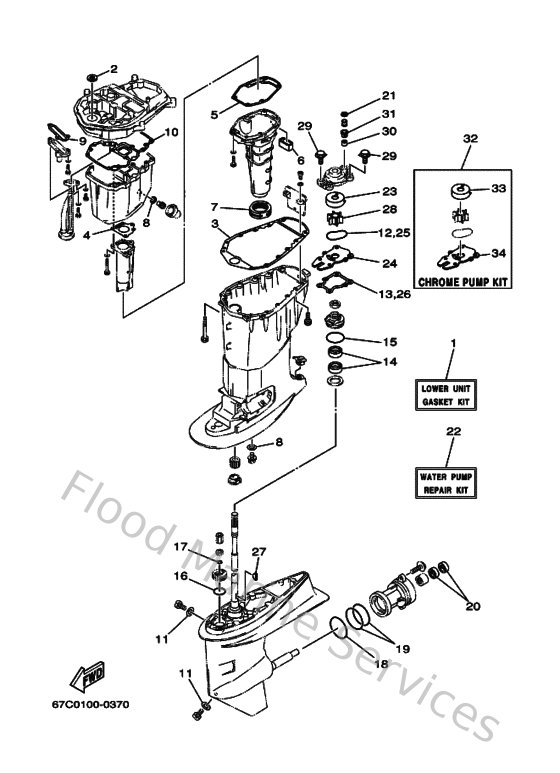

Diagram: Repair Kit 3
Parts List
Reference
Description
Price
1
67CW00012000
Lower unit gasket kit
Loading…
↗
2
9310416M0100
Oil seal(6a8)
Loading…
↗
3
67C451130000
Gasket, upper casing
Loading…
↗
4
67C411330000
Gasket, exhaust manifold 1
Loading…
↗
5
6BG411340000
Gasket, exhaust manifold
Loading…
↗
6
62Y451270000
Seal
Loading…
↗
7
67C451230000
Gasket, muffler
Loading…
↗
8
904301422800
Gasket(n261)
Loading…
↗
9
62Y134750000
Gasket
Loading…
↗
10
67C153120000
Gasket, oil pan
Loading…
↗
11
904300802000
Gasket
Loading…
↗
12
9321059MG700
O-ring
Loading…
↗
13
63D443160000
Gasket, water pump
Loading…
↗
14
9310122M6000
Oil seal
Loading…
↗
15
9321048MG800
O-ring
Loading…
↗
16
9321033MG400
O-ring
Loading…
↗
17
9321006ME600
O-ring
Loading…
↗
18
9321069MG600
O-ring
Loading…
↗
19
9321074MG500
O-ring (xea)
Loading…
↗
20
931012206700
Oil seal (22x36x6-663)
Loading…
↗
21
904301207200
Gasket
Loading…
↗
22
66TW00780000
Water pump repair kit
Loading…
↗
23
63D443220000
Insert, cartridge
Loading…
↗
24
66T443230000
Outer plate, cartridge
Loading…
↗
27
9028003M0700
Key, woodruff (697)
Loading…
↗
28
6H4443520200
Impeller
Loading…
↗
29
9011908M1500
Bolt, with washer(62w)
Loading…
↗
30
663443660000
Damper, water seal 2
Loading…
↗
31
63D443120000
Cover, water pump housing
Loading…
↗
32
66TW00780A00
Chrome pump kit
Loading…
↗
33
63D443224000
Insert, cartridge
Loading…
↗
34
66T443234000
Outer plate, cartridge
Loading…
↗
