Yamaha Outboard Parts - Repair Kit 3 - FT8DMHSL (2001) | Flood Marine

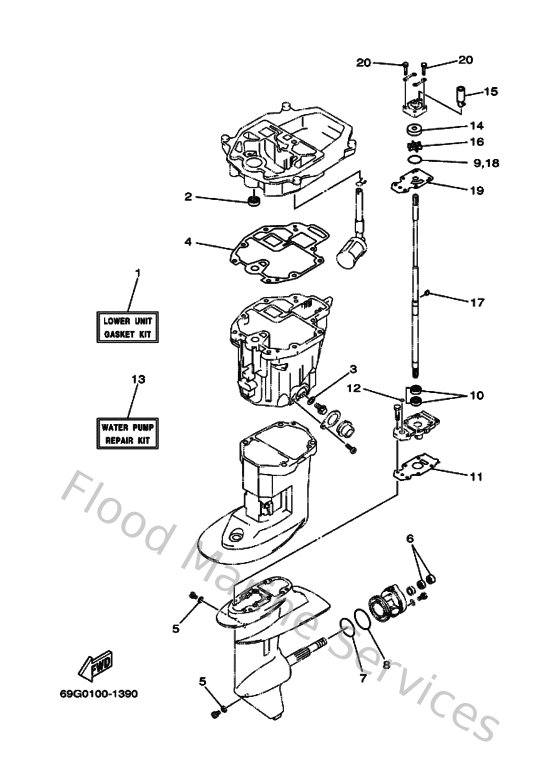

Diagram: Repair Kit 3

Diagram

Parts List

Reference
Description
Price


1
69GW00012000
Lower unit gasket kit
Loading…

↗
2
9310112M7000
Oil seal
Loading…

↗
3
9043010M1100
Gasket
Loading…

↗
4
68T134750000
Gasket
Loading…

↗
5
904300802000
Gasket
Loading…

↗
6
931011705400
Oil seal (17x30x6-650)
Loading…

↗
7
932107431600
O-ring (1j7)
Loading…

↗
8
9321074M6800
O-ring (6g8)
Loading…

↗
9
932104439800
O-ring(55x)
Loading…

↗
10
931022048400
Oil seal
Loading…

↗
11
69G45315A000
Packing, lower casing
Loading…

↗
12
9321006ME600
O-ring
Loading…

↗
13
69GW00780000
Water pump repair kit
Loading…

↗
14
63V443220000
Insert, cartridge
Loading…

↗
15
68T443660000
Damper, water seal 2
Loading…

↗
16
63V443520100
Impeller
Loading…

↗
17
664443380000
Key, woodruff
Loading…

↗
19
68T443230000
Outer plate, cartridge
Loading…

↗
20
970800804500
Bolt, hexagon
Loading…

↗
