Yamaha Outboard Parts - Rpservoir A Huile - 100AETO (1998) | Flood Marine

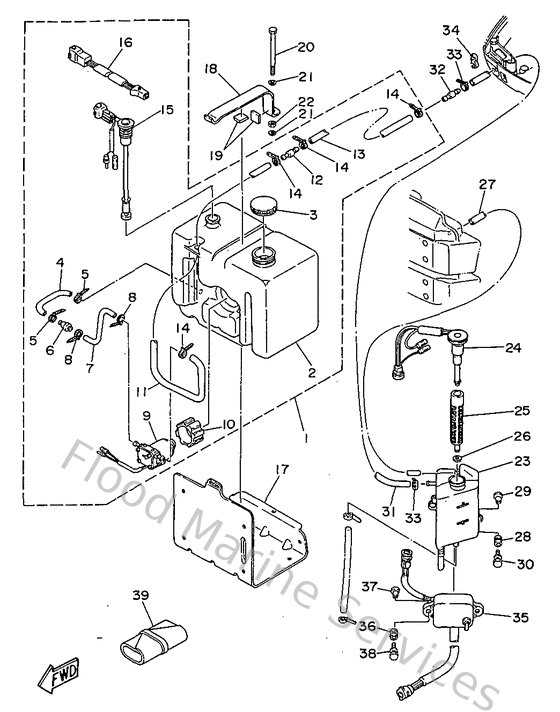

Diagram: Rpservoir A Huile

Diagram

Parts List

Reference
Description
Price


1
6E5217080800
Sub oil tank assembly
Loading…

↗
2
6E5217330200
Sub tank, oil (10.5l)
Loading…

↗
3
6E5217700300
Oil tank cap assembly
Loading…

↗
4
6E5243220000
Pipe 11
Loading…

↗
5
904651009800
Clamp
Loading…

↗
6
646242510200
Strainer 1
Loading…

↗
7
6E5243190100
Pipe, oil
Loading…

↗
8
9046511M1000
Clamp
Loading…

↗
9
6E5819000100
Oil feed pump assembly
Loading…

↗
10
6E5819220000
Grommet
Loading…

↗
11
6E5243210100
Pipe 10
Loading…

↗
12
6E5243790000
Pipe, joint 4
Loading…

↗
13
9044511M8100
Hose (l3000)
Loading…

↗
15
6E5857200400
Oil level gauge assembly
Loading…

↗
16
6R3857213000
Wire, lead
Loading…

↗
17
6E5217340133
Holder, oil sub tank
Loading…

↗
18
6E5217980133
Bracket, damper
Loading…

↗
19
6E5217460000
Damper
Loading…

↗
20
970800610000
Bolt, hexagon
Loading…

↗
21
929900660000
Washer, plain (646)
Loading…

↗
22
953800660000
Nut(661)
Loading…

↗
23
6E5217500500
Oil tank assembly
Loading…

↗
24
6G7857300300
Oil level gauge assembly
Loading…

↗
25
6E5134110000
Strainer, oil
Loading…

↗
26
6E5134140000
Gasket, strainer cover
Loading…

↗
27
9044505M0700
Hose (l700)
Loading…

↗
28
6A0823170000
Damper, ignition coil
Loading…

↗
29
624425420000
Collar
Loading…

↗
30
9011906M6500
Bolt, with washer
Loading…

↗
31
6N7243230000
Pipe 12
Loading…

↗
34
9046413M3400
Clamp(6r3)
Loading…

↗
35
6E5WS8570000
Control unit kit
Loading…

↗
39
656W28100200
Tool kit
Loading…

↗
