F100DET (2015)
SCHEDULED SERVICE PARTS

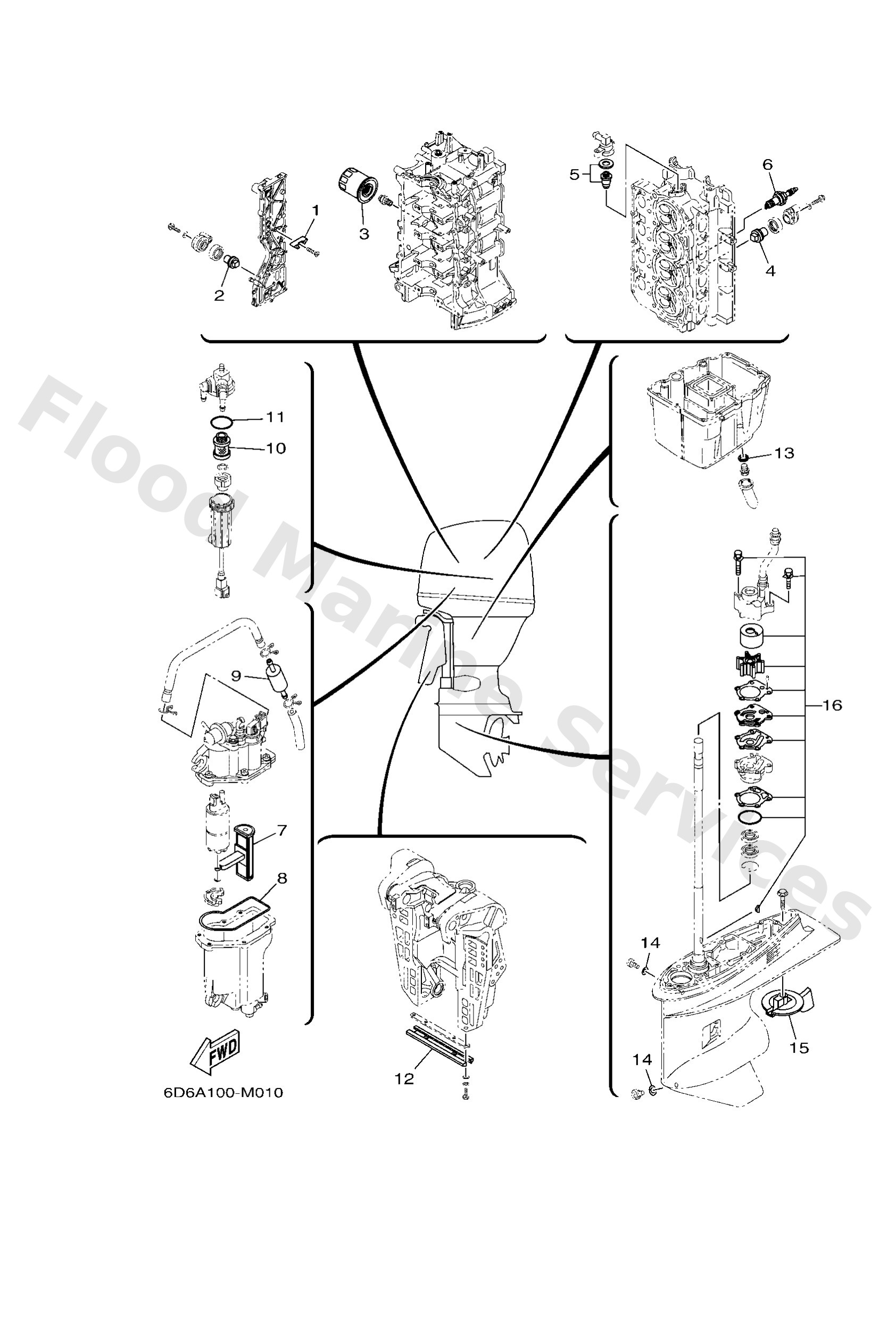

Diagram: SCHEDULED SERVICE PARTS
Parts List
Reference
Description
Price
1
6E51132500
Anode
Loading…
↗
2
67F1132501
Anode
Loading…
↗
3
5GH1344030
Element assembly, oil cleaner
Loading…
↗
5
67F1241101
Thermostat
Loading…
↗
5
6D91241100
Thermostat
Loading…
↗
6
9470200391
Plug, spark (lfr5a-11)
Loading…
↗
7
6C51391500
Filter
Loading…
↗
8
6C51498400
6D9)-1026470
Gasket, float chamber
Loading…
↗
8
6C51498410
6D9)1026471-
Gasket, float chamber
Loading…
↗
9
6C52425100
Strainer 1
Loading…
↗
10
6D82456300
Element, filter (with tag)
Loading…
↗
11
6D82456400
Gasket
Loading…
↗
12
6H14525103
Anode
Loading…
↗
13
9043014M09
Gasket
Loading…
↗
14
9043008020
Gasket
Loading…
↗
15
67F4537100
Tab-trim
Loading…
↗
16
67FW007800
Water pump repair kit
Loading…
↗
