Yamaha Outboard Parts - SCHEDULED SERVICE PARTS - F100FET (2017) | Flood Marine

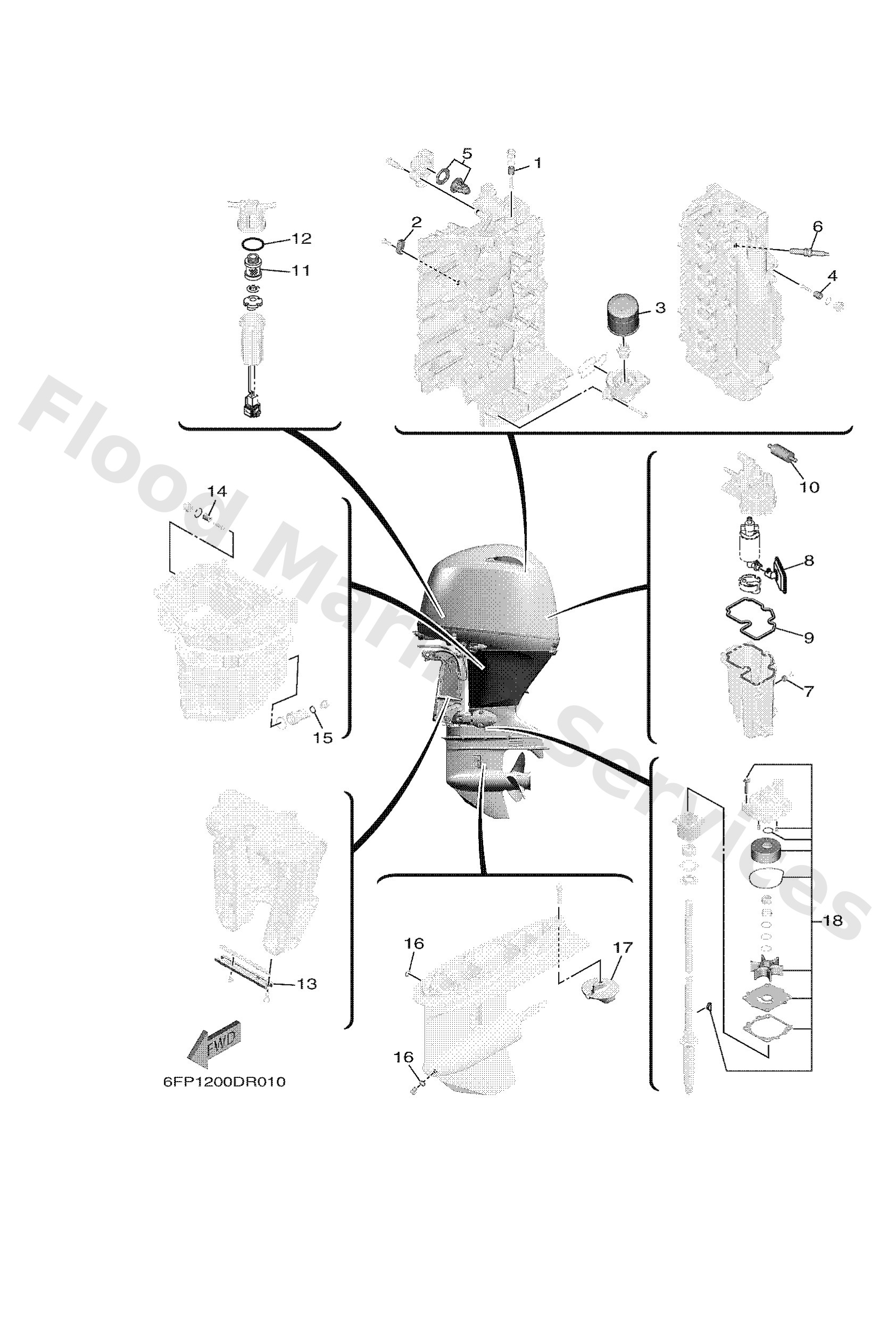

Diagram: SCHEDULED SERVICE PARTS

Diagram

Parts List

Reference
Description
Price


1
6G81132500
Anode
Loading…

↗
2
63P1132501
Anode
Loading…

↗
3
5GH1344070
Element assembly, oil cleaner
Loading…

↗
5
6FP1241100
Thermostat
Loading…

↗
6
9470200440
Plug, spark (ngk lkr6e 9n)
Loading…

↗
7
63P1132521
Anode
Loading…

↗
8
6FP1391500
Filter
Loading…

↗
9
6FP1498400
Gasket, float chamber
Loading…

↗
10
6C52425100
Strainer 1
Loading…

↗
11
6D82456300
Element, filter (with tag)
Loading…

↗
12
6D82456400
Gasket
Loading…

↗
13
6H14525103
Anode
Loading…

↗
15
9043014M09
Gasket
Loading…

↗
16
9043008003
Gasket
Loading…

↗
17
6E54537101
Trim tab
Loading…

↗
18
68VW007800
Water pump repair kit
Loading…

↗
