Yamaha Outboard Parts - SCHEDULED SERVICE PARTS - F225CET (2013) | Flood Marine

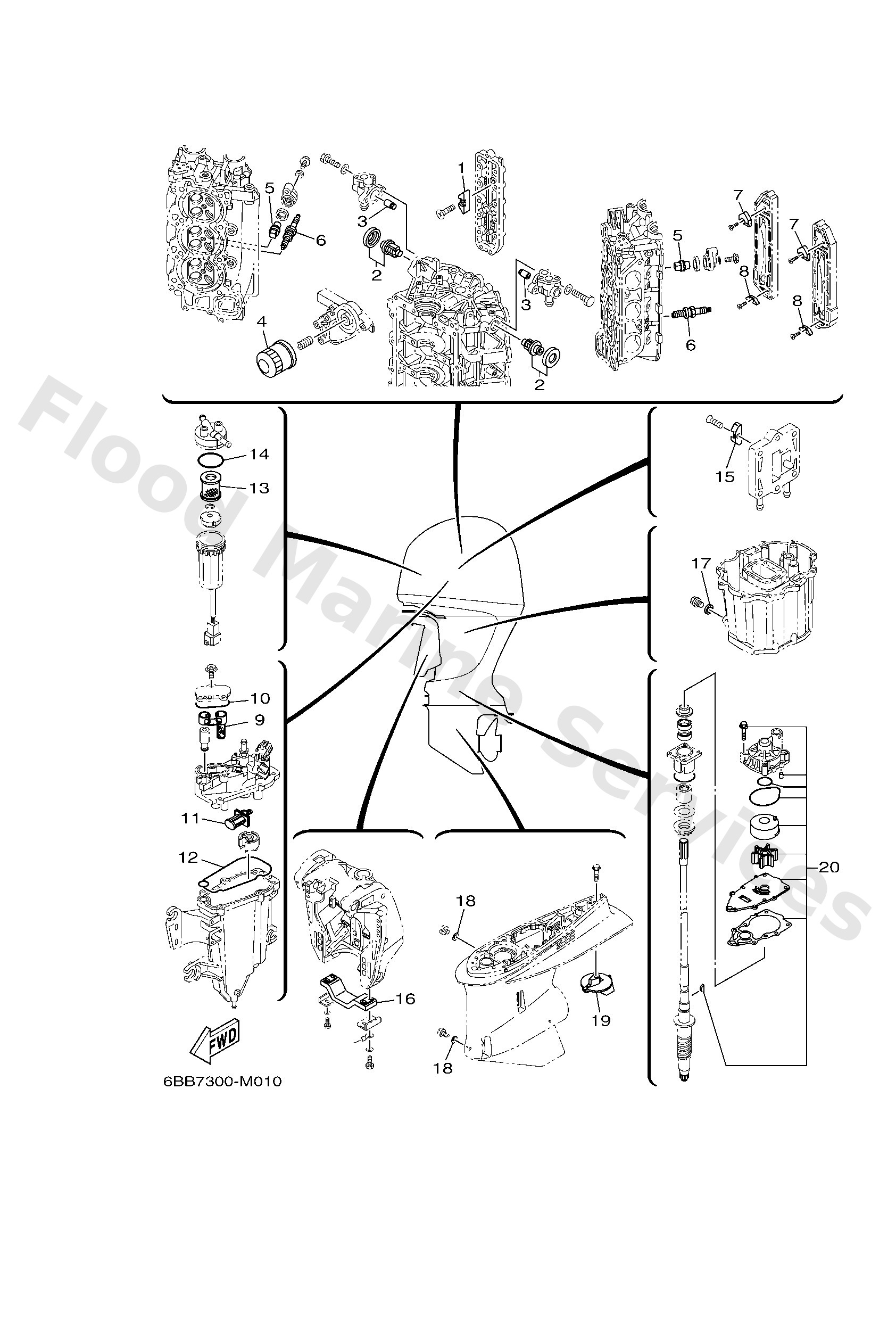

Diagram: SCHEDULED SERVICE PARTS

Diagram

Parts List

Reference
Description
Price


1
6E51132500
Anode
Loading…

↗
2
67F1241101
Thermostat
Loading…

↗
3
6P31132500
Anode
Loading…

↗
4
69J1344001
Element assembly, oil cleaner
Loading…

↗
5
67F1132501
Anode
Loading…

↗
6
9470200400
Plug, spark (lfr6a-11)
Loading…

↗
7
6P21132500
Anode
Loading…

↗
9
6CB2450101
Filter, fuel
Loading…

↗
10
6CB1301600
O-ring
Loading…

↗
11
63P1391500
Filter
Loading…

↗
12
6CB1498400
Gasket, float chamber
Loading…

↗
13
6P32456301
Element, filter (with tag)
Loading…

↗
14
6P32456400
Gasket
Loading…

↗
16
6G54525102
Anode
Loading…

↗
17
9043014M09
Gasket
Loading…

↗
18
9043008020
Gasket
Loading…

↗
19
69L4537100
Tab-trim
Loading…

↗
20
6P2W007800
Water pump repair kit
Loading…

↗
