Yamaha Outboard Parts - SCHEDULED SERVICE PARTS - F40GET1 (2020) | Flood Marine

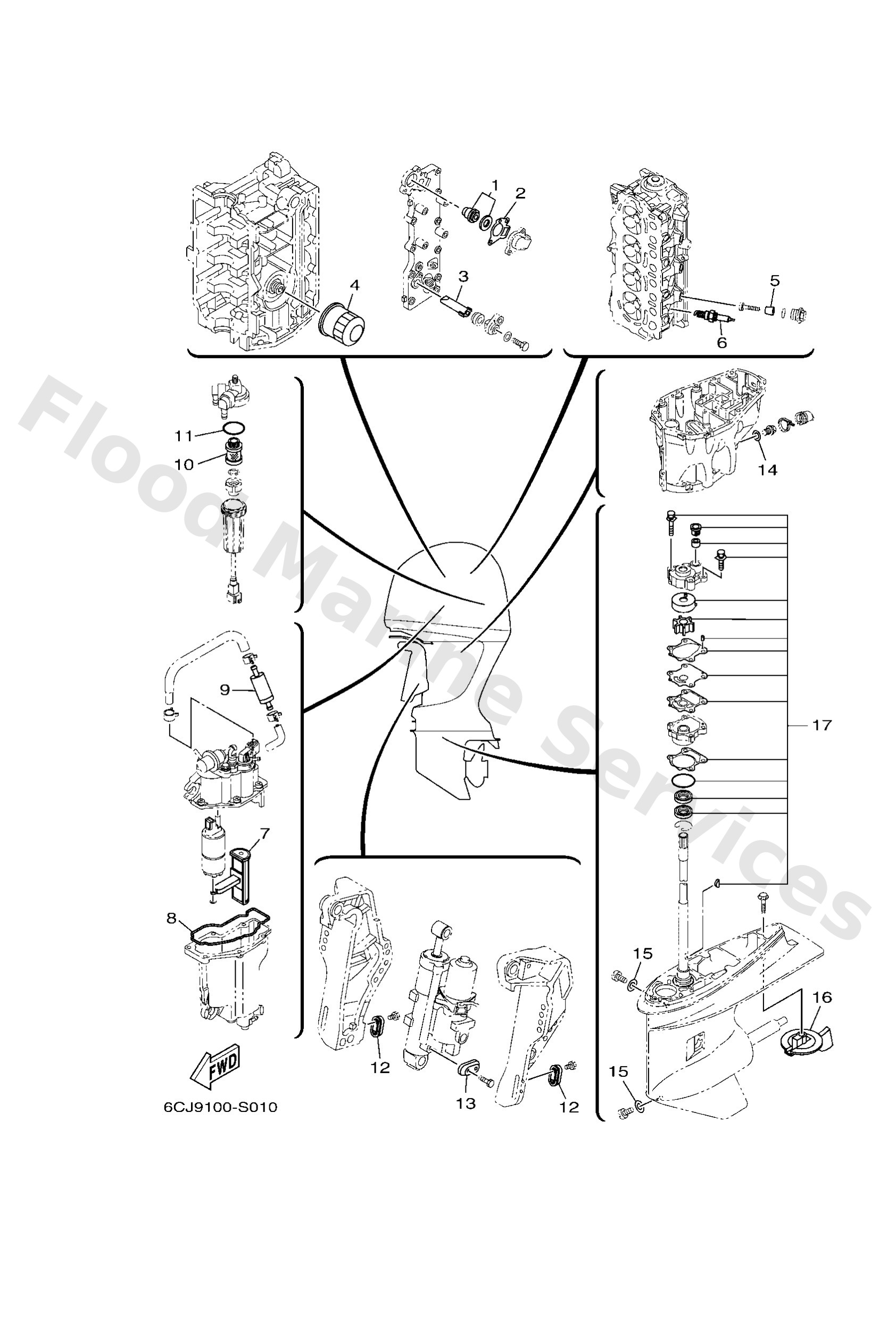

Diagram: SCHEDULED SERVICE PARTS

Diagram

Parts List

Reference
Description
Price


1
6G81241103
Thermostat
Loading…

↗
2
62Y1241400
Gasket, cover
Loading…

↗
3
62Y1132500
Anode
Loading…

↗
4
5GH1344061
Element assembly, oil cleaner
Loading…

↗
5
6G81132500
Anode
Loading…

↗
6
9470200429
Plug, spark (ngk lkr7e)
Loading…

↗
7
6C51391500
Filter
Loading…

↗
8
6C51498410
Gasket, float chamber
Loading…

↗
9
6C52425100
Strainer 1
Loading…

↗
10
6D82456300
Element, filter (with tag)
Loading…

↗
11
6D82456400
Gasket
Loading…

↗
12
65W4525100
Anode
Loading…

↗
14
9043014M09
Gasket
Loading…

↗
15
9043008003
Gasket
Loading…

↗
16
67F4537100
Tab-trim
Loading…

↗
17
6CJW007800
Water pump repair kit
Loading…

↗
