Yamaha Outboard Parts - SCHEDULED SERVICE PARTS - F5AMH (2019) | Flood Marine

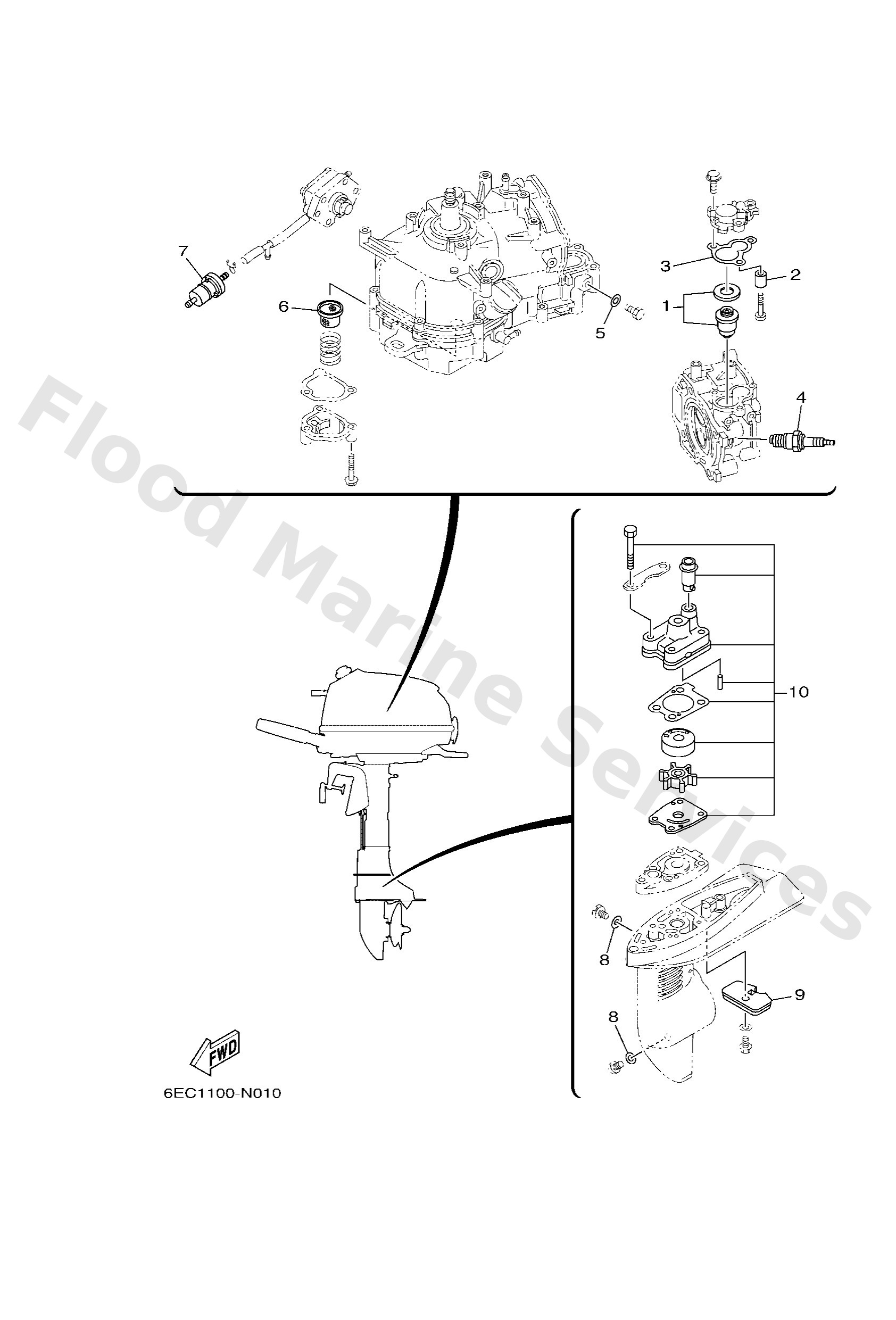

Diagram: SCHEDULED SERVICE PARTS

Diagram

Parts List

Reference
Description
Price


1
66M1241101
Thermostat
Loading…

↗
2
6G81132500
Anode
Loading…

↗
3
67D12414A0
Gasket, cover
Loading…

↗
4
9470200372
Plug, spark (cr6hsb)
Loading…

↗
5
9043008143
Gasket (256-11198-00)
Loading…

↗
6
5YPE341100
Strainer, oil
Loading…

↗
7
6EEF425100
Strainer 1
Loading…

↗
8
9043008003
Gasket
Loading…

↗
9
6L54525103
Anode
Loading…

↗
10
6EEW007801
Water pump repair kit
Loading…

↗
