Yamaha Outboard Parts - SCHEDULED SERVICE PARTS - FL115BET (2014) | Flood Marine

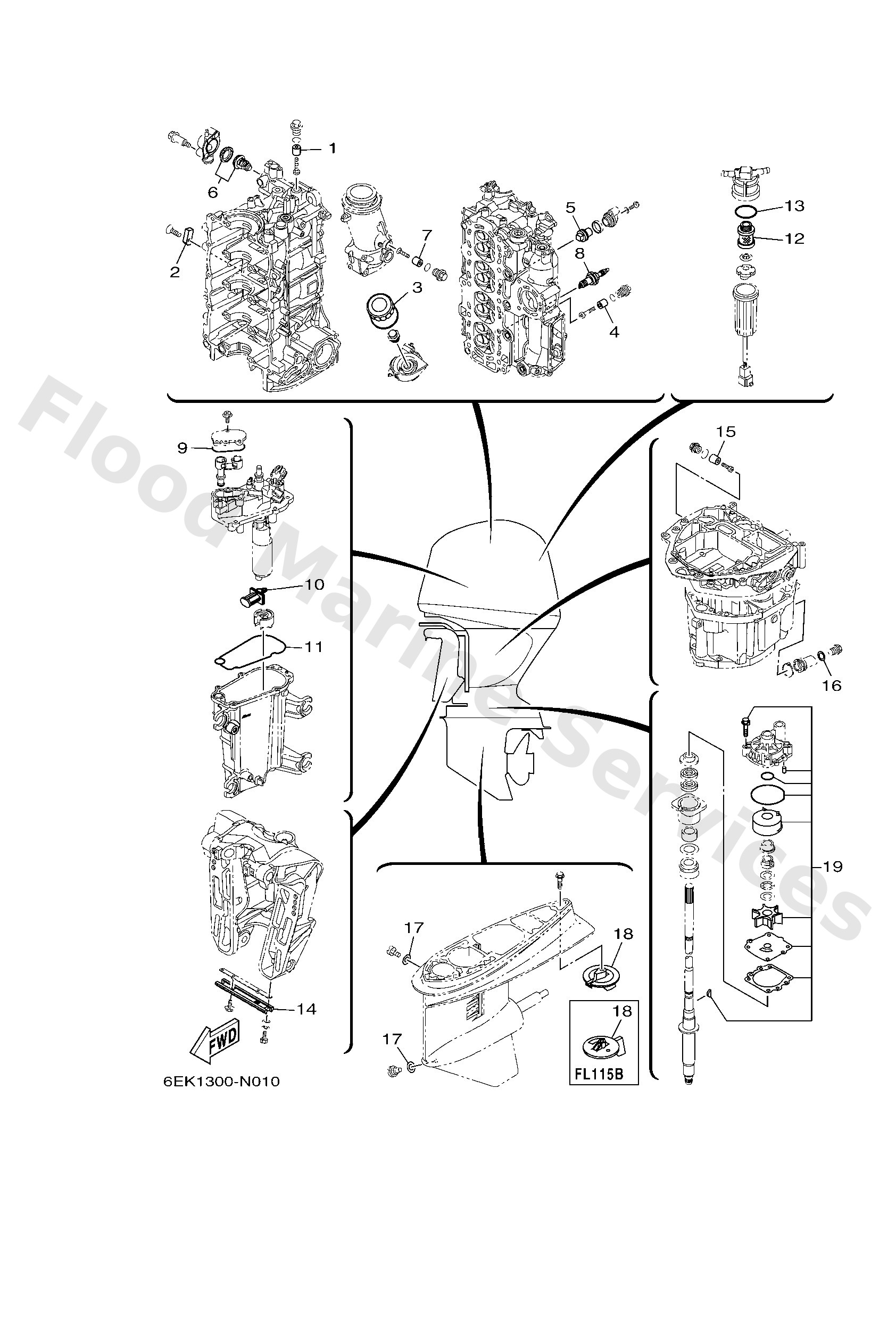

Diagram: SCHEDULED SERVICE PARTS

Diagram

Parts List

Reference
Description
Price


1
6G81132500
Anode
Loading…

↗
2
63P1132501
Anode
Loading…

↗
3
5GH1344030
Element assembly, oil cleaner
Loading…

↗
5
67F1132501
Anode
Loading…

↗
6
6EK1241100
Thermostat
Loading…

↗
7
6EK1132500
Anode
Loading…

↗
8
9470200437
Plug, spark (lkr6e)
Loading…

↗
9
6CB1301600
O-ring
Loading…

↗
10
63P1391500
Filter
Loading…

↗
11
6CB1498400
Gasket, float chamber
Loading…

↗
12
6D82456300
Element, filter (with tag)
Loading…

↗
13
6D82456400
Gasket
Loading…

↗
14
6H14525103
Anode
Loading…

↗
16
9043014M09
Gasket
Loading…

↗
17
9043008020
Gasket
Loading…

↗
18
6E54537101
Trim tab
Loading…

↗
18
6L64537100
Tab-trim
Loading…

↗
19
68VW007800
Water pump repair kit
Loading…

↗
