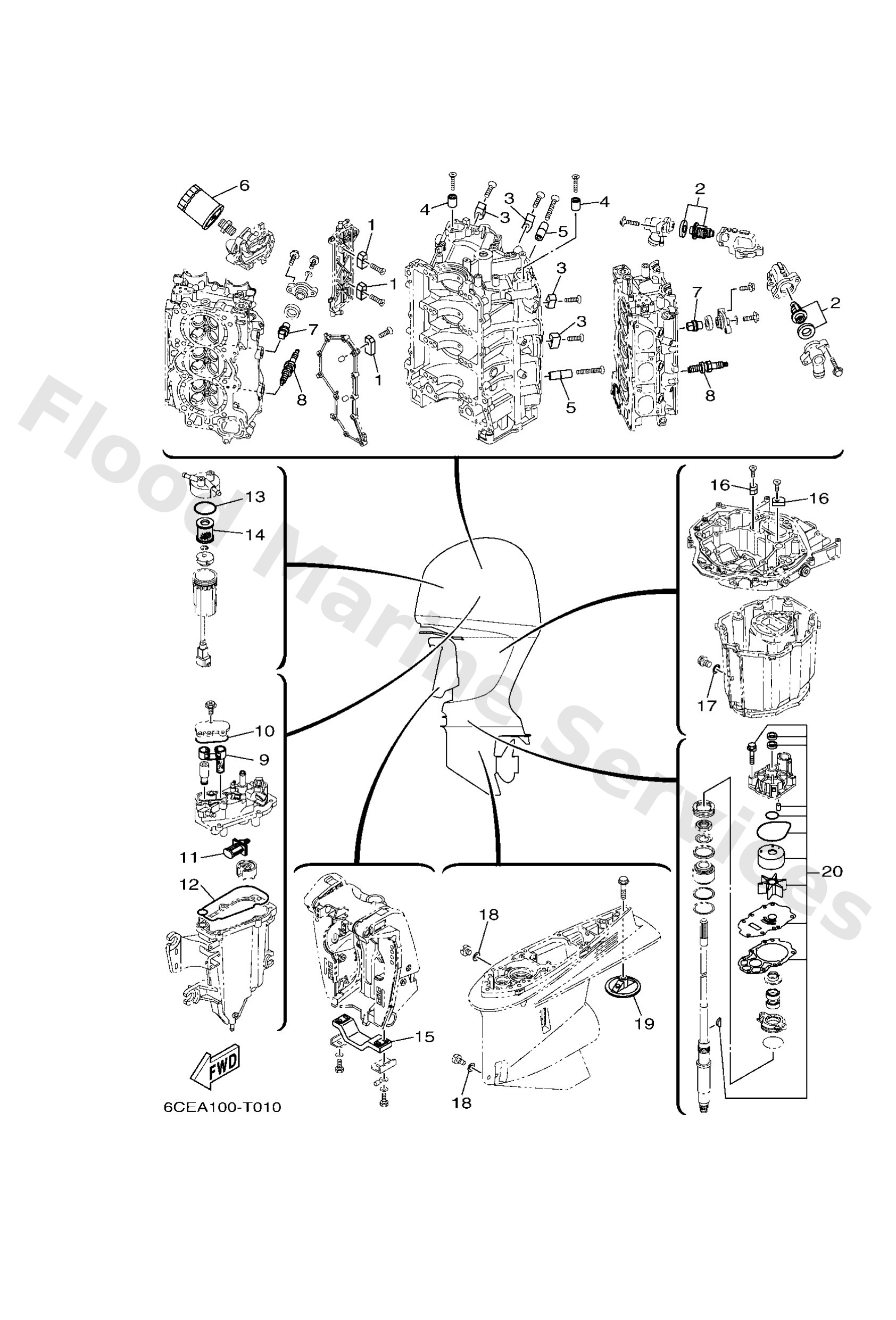

Diagram: SCHEDULED SERVICE PARTS

Diagram

Parts List

Reference
Description
Price


1
63P1132501
1
Loading…

↗
2
6CE1241100
Thermostat
Loading…

↗
3
6AW1132P00
Anode 5
Loading…

↗
4
68T1132500
1
Loading…

↗
5
6AW1132N01
Anode 4
Loading…

↗
6
N261344003
Element assembly, oil cleaner
Loading…

↗
7
67F1132501
1
Loading…

↗
8
9470200400
Plug, Spark (Ngk Lfr6A-11)
Loading…

↗
9
6CB2450101
Filter, Fuel
Loading…

↗
10
6CB1301600
O-Ring
Loading…

↗
11
63P1391500
Filter
Loading…

↗
12
6CB1498400
Gasket, Float Chamber
Loading…

↗
13
6P32456400
Gasket
Loading…

↗
14
6P32456301
Element, Filter
Loading…

↗
15
6G54525102
Anode
Loading…

↗
16
63P1132511
1
Loading…

↗
17
9043014M09
Gasket
Loading…

↗
18
9043008003
Gasket
Loading…

↗
19
6CE4537300
Anode
Loading…

↗
20
6CEW007801
Water pump repair kit
Loading…

↗
