Yamaha Outboard Parts - SCHEDULED SERVICE PARTS - FL350AET (2013) | Flood Marine

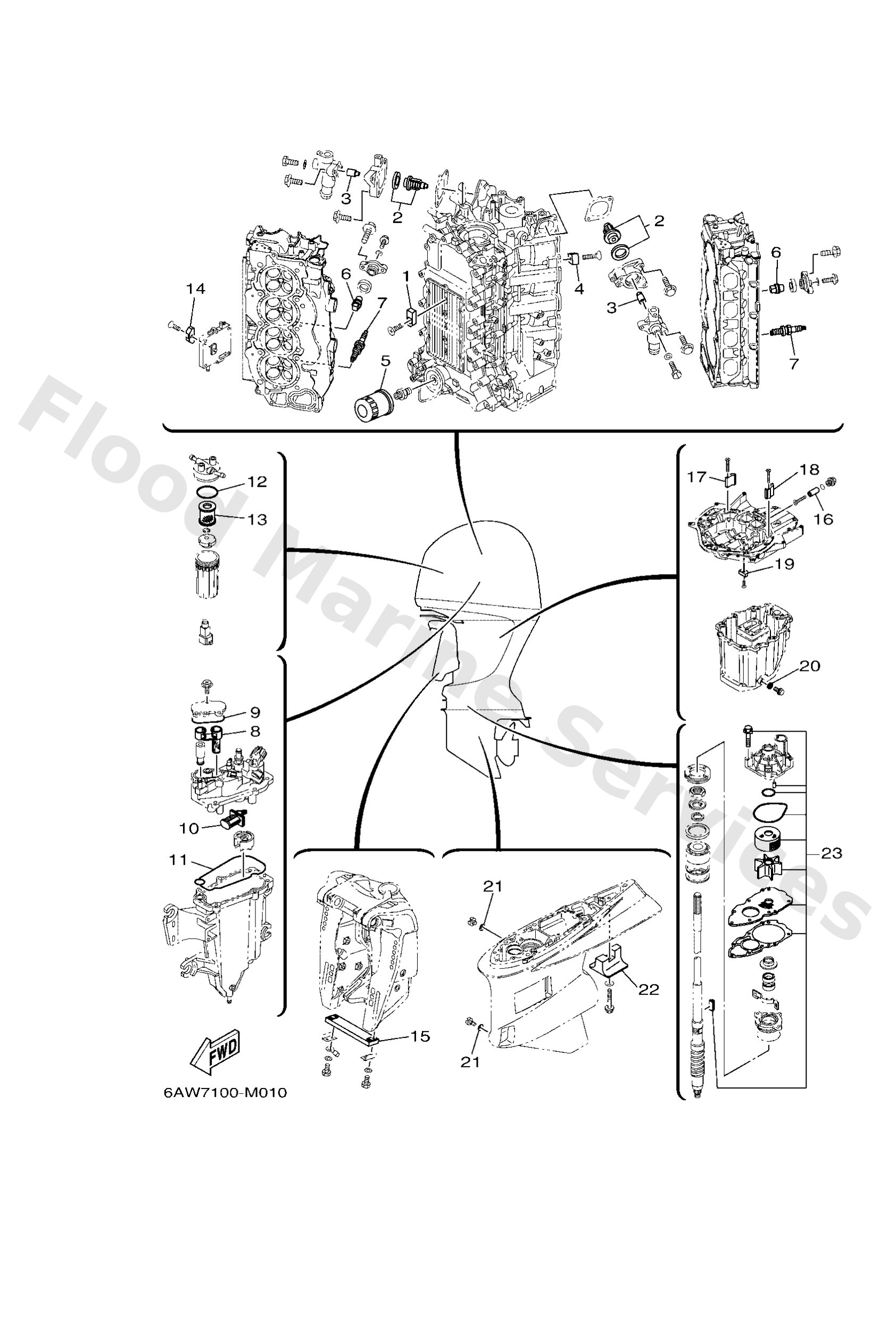

Diagram: SCHEDULED SERVICE PARTS

Diagram

Parts List

Reference
Description
Price


1
63P1132501
Anode
Loading…

↗
2
6AW1241100
Thermostat
Loading…

↗
3
6AW1132R00
Anode 6
Loading…

↗
4
6AW1132P00
Anode 5
Loading…

↗
5
N261344000
Element assembly, oil cleaner
Loading…

↗
6
67F1132501
Anode
Loading…

↗
7
9470200400
Plug, spark (lfr6a-11)
Loading…

↗
8
6CB2450101
Filter, fuel
Loading…

↗
9
6CB1301600
O-ring
Loading…

↗
10
63P1391500
Filter
Loading…

↗
11
6CB1498400
Gasket, float chamber
Loading…

↗
12
6P32456400
Gasket
Loading…

↗
13
6P32456301
Element, filter (with tag)
Loading…

↗
14
6E51132500
Anode
Loading…

↗
15
6AW4525100
Anode
Loading…

↗
16
6AW1132S00
Anode 7
Loading…

↗
17
6AW1132T00
Anode 8
Loading…

↗
18
6AW1132U00
Anode 9
Loading…

↗
19
63P1132511
Anode
Loading…

↗
20
9043014M09
Gasket
Loading…

↗
21
9043008020
Gasket
Loading…

↗
22
6AW4537300
Anode
Loading…

↗
23
6AWW007800
Water pump repair kit
Loading…

↗
