Yamaha Outboard Parts - SCHEDULED SERVICE PARTS - FT25FET (2020) | Flood Marine

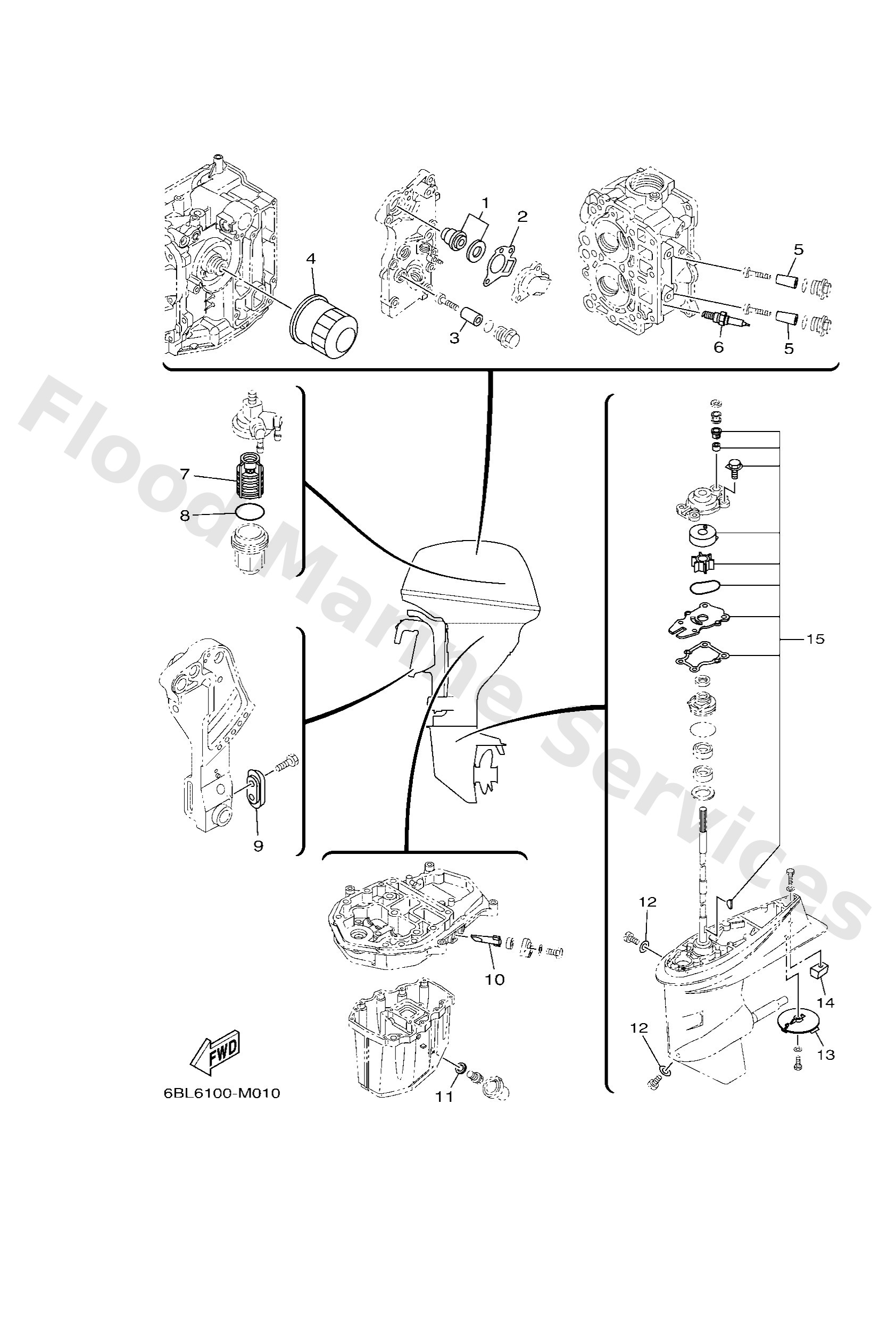

Diagram: SCHEDULED SERVICE PARTS

Diagram

Parts List

Reference
Description
Price


1
6G81241103
Thermostat
Loading…

↗
2
62Y1241400
Gasket, cover
Loading…

↗
3
6G81132500
Anode
Loading…

↗
4
5GH1344061
Element assembly, oil cleaner
Loading…

↗
5
6BL1132500
Anode
Loading…

↗
6
9470200418
Plug, spark (dpr6eb-9)
Loading…

↗
7
61N2456310
Element, filter
Loading…

↗
8
9321032738
O-ring(1wg)
Loading…

↗
9
65W4525100
Anode
Loading…

↗
10
62Y1132500
Anode
Loading…

↗
11
9043014M09
Gasket
Loading…

↗
12
9043008003
Gasket
Loading…

↗
13
67C4537100
Tab-trim
Loading…

↗
14
67C4525100
Anode
Loading…

↗
15
66TW007800
Water pump repair kit
Loading…

↗
