Yamaha Outboard Parts - SCHEDULED SERVICE PARTS - LF150B (2022) | Flood Marine

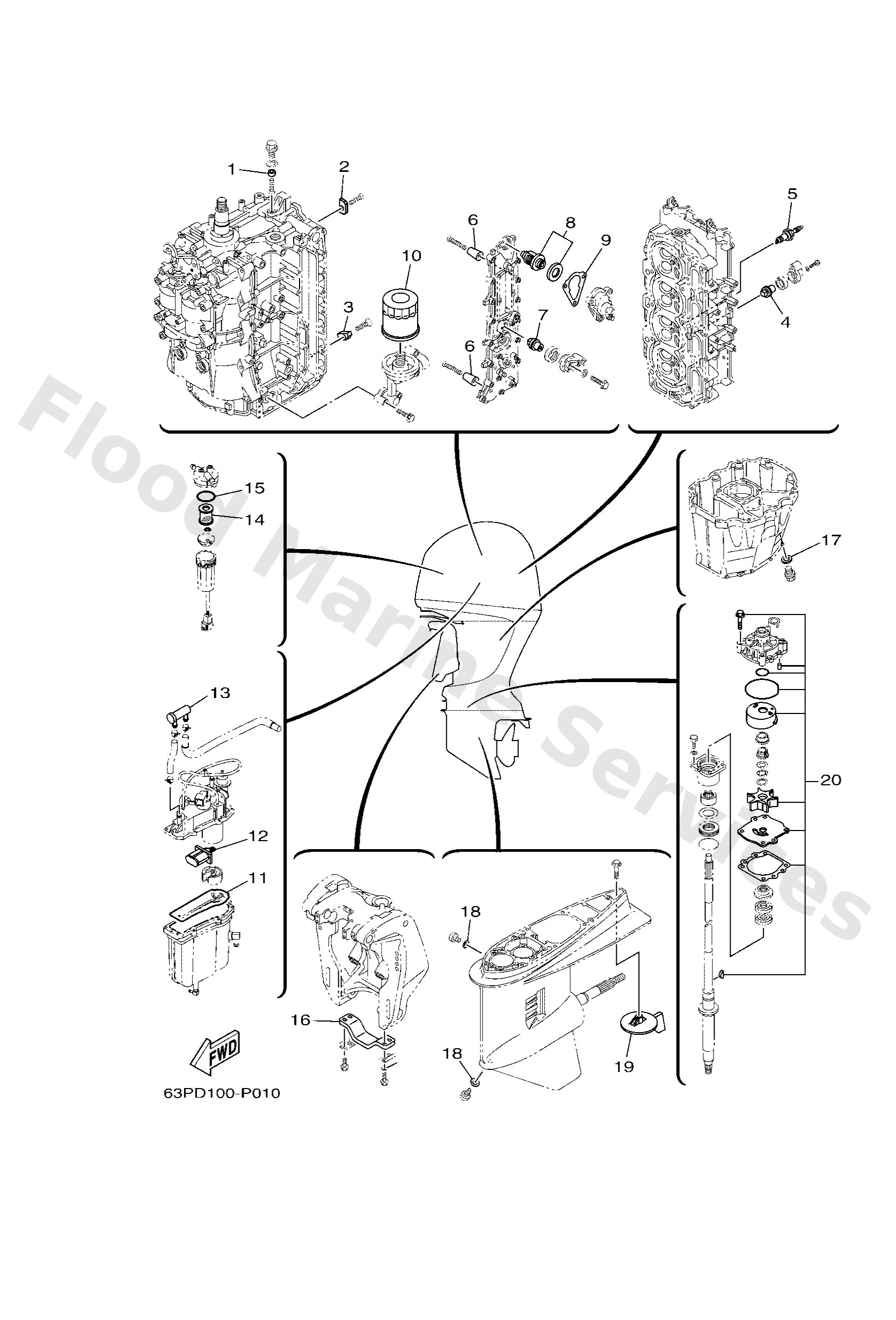

Diagram: SCHEDULED SERVICE PARTS

Diagram

Parts List

Reference
Description
Price


1
63P1132521
Anode
Loading…

↗
2
63P1132511
Anode
Loading…

↗
3
63P1132501
Anode
Loading…

↗
4
67F1132501
Anode
Loading…

↗
5
9470200391
Plug, spark (lfr5a-11)
Loading…

↗
6
68T1132500
Anode
Loading…

↗
8
67F1241101
Thermostat
Loading…

↗
9
63P1241400
Gasket, cover
Loading…

↗
10
69J1344004
Element assembly, oil cleaner
Loading…

↗
11
63P1498400
Gasket, float chamber
Loading…

↗
12
63P1391500
Filter
Loading…

↗
13
69J2450110
Filter, fuel
Loading…

↗
14
6P32456302
Element, filter (with tag)
Loading…

↗
15
6P32456400
Gasket
Loading…

↗
16
6G54525102
Anode
Loading…

↗
17
9043014M09
Gasket
Loading…

↗
18
9043008003
Gasket
Loading…

↗
19
6K14537102
Tab-trim
Loading…

↗
19
6J94537101
Tab-trim
Loading…

↗
20
61AW0078A4
Water pump repair kit
Loading…

↗
