Yamaha Outboard Parts - SCHEDULED SERVICE PARTS - LF175CA (2022) | Flood Marine

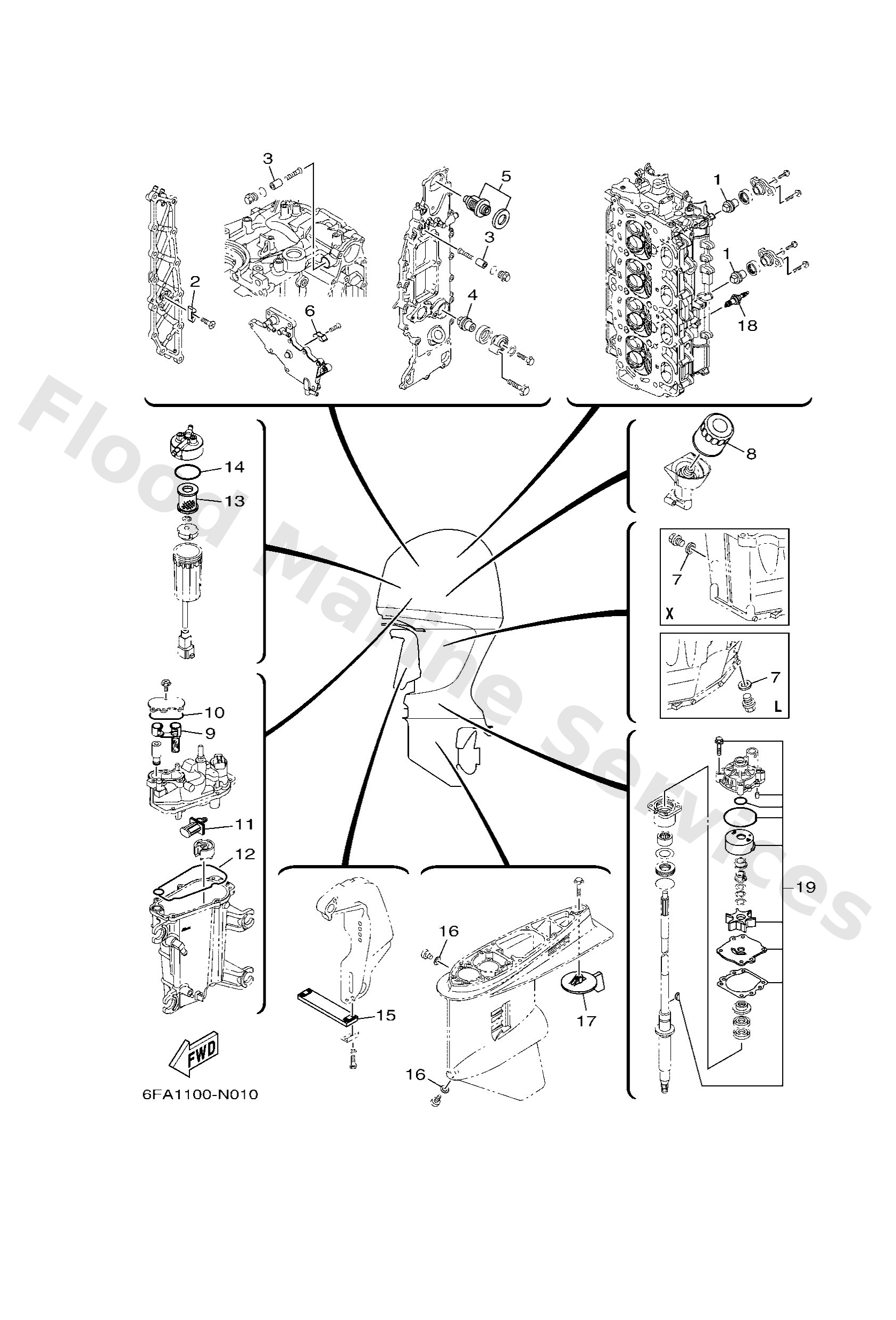

Diagram: SCHEDULED SERVICE PARTS

Diagram

Parts List

Reference
Description
Price


1
67F1132501
Anode
Loading…

↗
2
6E51132500
Anode
Loading…

↗
3
68T1132500
Anode
Loading…

↗
5
6DA1241101
Thermostat
Loading…

↗
7
9043014M09
Gasket
Loading…

↗
8
69J1344004
Element assembly, oil cleaner
Loading…

↗
9
6CB2450101
Filter, fuel
Loading…

↗
10
6CB1301600
O-ring
Loading…

↗
11
63P1391500
Filter
Loading…

↗
12
6CB1498400
Gasket, float chamber
Loading…

↗
13
6P32456302
Element, filter (with tag)
Loading…

↗
14
6P32456400
Gasket
Loading…

↗
15
6AW4525100
Anode
Loading…

↗
16
9043008003
Gasket
Loading…

↗
17
6K14537102
Tab-trim
Loading…

↗
17
6J94537101
Tab-trim
Loading…

↗
18
9470200400
Plug, spark (lfr6a-11)
Loading…

↗
19
61AW0078A4
Water pump repair kit
Loading…

↗
