VF90B (2025)
SCHEDULED SERVICE PARTS

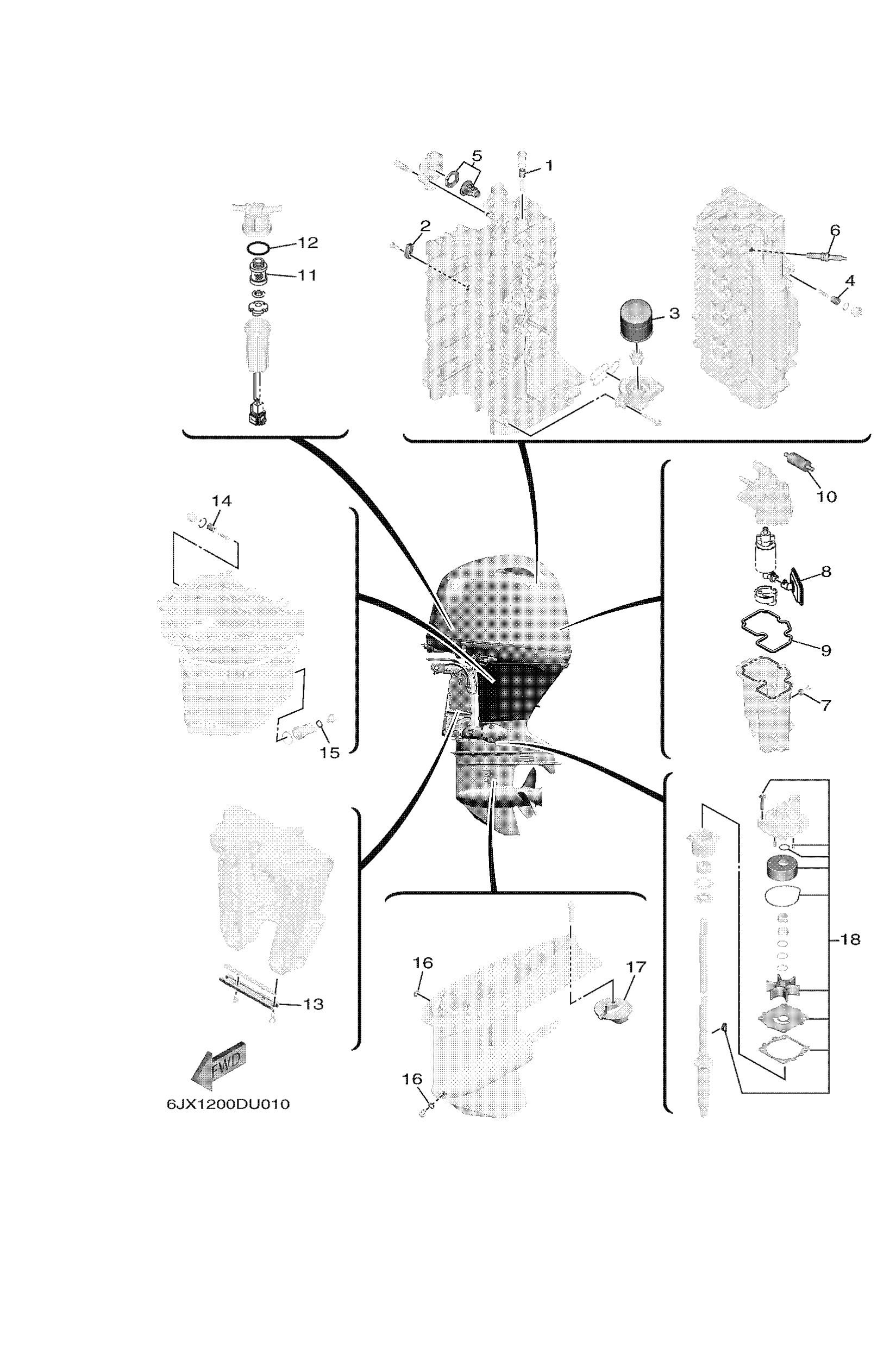

Diagram: SCHEDULED SERVICE PARTS
Parts List
Reference
Description
Price
1
6G81132500
Anode
Loading…
↗
2
63P1132501
Anode
Loading…
↗
3
5GH1344072
Element assembly, oil cleaner
Loading…
↗
5
6FP1241100
Thermostat
Loading…
↗
6
9470200440
Plug, spark (ngk lkr6e 9n)
Loading…
↗
7
63P1132521
Anode
Loading…
↗
8
6FP1391500
Filter
Loading…
↗
9
6FP1498400
Gasket, float chamber
Loading…
↗
10
6C52425101
Strainer 1
Loading…
↗
11
6D82456300
Element, filter (with tag)
Loading…
↗
12
6D82456400
Gasket
Loading…
↗
13
6H14525103
Anode
Loading…
↗
15
9043014M09
Gasket
Loading…
↗
16
9043008003
Gasket
Loading…
↗
17
6E54537101
Trim tab
Loading…
↗
18
68VW007801
Water pump repair kit
Loading…
↗
